The Customized Heavy-Duty Industrial-Grade Bucket-Type Waste Compactor is a high-performance waste compression solution designed for commercial, industrial, municipal, and large-scale sanitation applications. Combining a robust hydraulic compression system with an integrated automatic bin lifting mechanism, this equipment can collect, lift, empty, and compact waste in one continuous operation.
Designed for demanding working environments, the Industrial-Grade Bucket-Type Waste Compactor is available in customized configurations for 240L, 660L, and 1100L garbage bins. The lifting mechanism, hopper dimensions, compression chamber, control system, and overall equipment configuration can be adjusted according to the customer's waste collection requirements and local garbage bin standards.

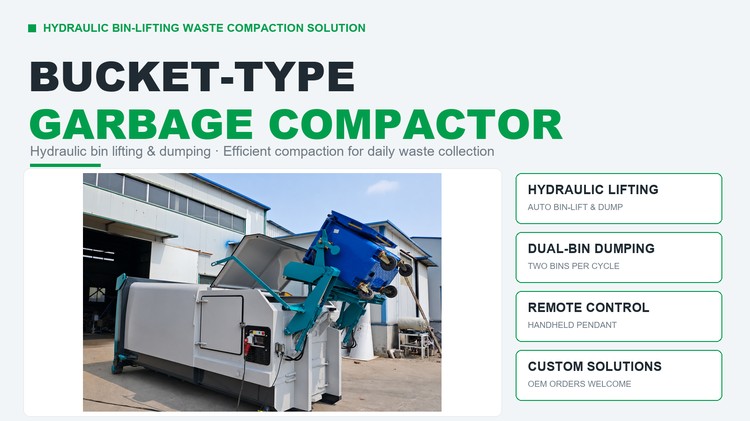

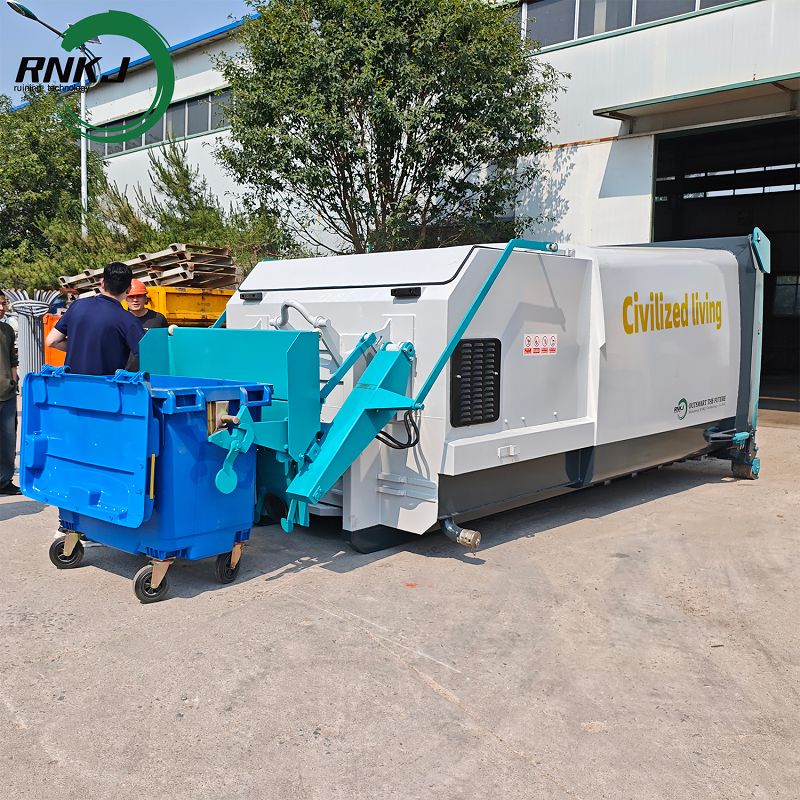

The equipment shown in the images features a heavy-duty hydraulic lifting structure capable of handling large-capacity wheeled waste bins. After the bin is positioned in front of the machine, the lifting mechanism raises and tilts the bin, allowing the waste to fall into the loading hopper. The waste is then compressed inside the compaction chamber to reduce its volume and improve waste storage and transportation efficiency.
What Is a Industrial-Grade Bucket-Type Waste Compactor?An Industrial-Grade Bucket-Type Waste Compactor is a mechanized waste collection and compression machine that combines a garbage loading hopper, hydraulic bin lifter, waste compression chamber, hydraulic power system, electrical control system, and discharge structure into an integrated unit.
Unlike conventional garbage bins that simply store loose waste, this type of waste compactor actively reduces the volume of collected garbage through mechanical compression. The integrated bucket lifting system also minimizes manual handling, making it suitable for locations where large quantities of waste need to be collected regularly.
The heavy-duty construction makes this machine particularly suitable for:
Municipal sanitation projects
Industrial parks
Factories and manufacturing facilities
Commercial complexes
Shopping centers
Residential communities
Hotels and large catering facilities
Logistics and distribution centers
Public institutions
Waste transfer and collection points
Customized for 240L, 660L and 1100L Garbage BinsOne of the main advantages of this Industrial-Grade Bucket-Type Waste Compactor is its flexible garbage bin compatibility.
The equipment can be customized according to the customer's existing waste collection system and can be configured for:
The 240L configuration is suitable for residential areas, small commercial facilities, offices, hotels, and other locations where relatively small wheeled garbage bins are commonly used.
The lifting mechanism can be matched to the dimensions and lifting points of the 240L bin, helping operators empty the container quickly without manually handling the waste.
For commercial buildings, industrial facilities, communities, and public sanitation projects with higher waste volumes, the 660L garbage bin compactor configuration provides greater loading efficiency.
The hydraulic lifting system raises the wheeled bin and automatically tips its contents into the hopper before returning the bin to the ground.
The 1100L configuration is designed for high-volume waste collection applications. It is particularly suitable for industrial areas, large commercial properties, shopping centers, municipal sanitation stations, and other sites that generate substantial quantities of solid waste.
The lifting system can be engineered according to the size, weight, dimensions, and lifting structure of the customer's 1100L garbage bins.
Custom bin compatibility is not limited to a single standard. Customers can provide their garbage bin dimensions, lifting requirements, waste type, and operating conditions, allowing the machine to be configured around the actual collection system.
Heavy-Duty Hydraulic Bin Lifting SystemThe hydraulic lifting mechanism is one of the most important components of the machine. It allows operators to load wheeled garbage bins into the compactor with significantly less manual labor.
During operation, the garbage bin is positioned at the front loading area. The hydraulic lifting arms securely engage the bin and raise it to the required height. The bin is then tilted over the loading hopper so that its contents fall into the compression chamber.
After unloading, the mechanism lowers the empty bin back to the ground.
The hydraulic lifting structure is designed for repeated operation and can be customized according to different garbage bin sizes. For heavy-duty applications, the lifting capacity and hydraulic components can be selected based on the actual loaded weight of the bins.
High-Efficiency Waste CompressionAfter garbage enters the hopper, the hydraulic compression system pushes the waste into the compression chamber and applies controlled pressure to reduce its volume.
The compaction process offers several practical benefits:
Reduces loose waste volume
Increases waste storage density
Reduces the frequency of waste removal
Makes better use of the available container space
Helps improve transportation efficiency
Reduces manual waste handling
Creates a cleaner and more organized waste collection area
For facilities generating large amounts of municipal or commercial waste, waste volume reduction can make a significant difference in daily collection and transportation operations.
Technical ParametersPerformance Parameters | |
Compression | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³ ,15m³ ,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW,5.5KW,7.5KW |
Machine weight (kg) | 4800kg,5500kg,6080kg,6580kg, |
Power supply | Local working voltage |
Operation mode | Automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Built for Industrial Working ConditionsThe Industrial-Grade Bucket-Type Waste Compactor is designed with durability and continuous operation in mind. The main structural frame is manufactured for heavy-duty service, while the hydraulic system provides the force required for both bin lifting and waste compaction.
Compared with lightweight waste compactors designed for occasional use, an industrial-grade configuration can be engineered for more demanding operating environments where the machine may be used repeatedly throughout the working day.
The equipment can also be customized with different hydraulic components, electrical control configurations, structural materials, protective treatments, and operating functions according to the project requirements.
Integrated Hydraulic and Electrical ControlThe machine uses a hydraulic power system to control the main mechanical operations, including garbage bin lifting and waste compression.
The electrical control system provides centralized operation of the equipment and can be configured with manual control functions and safety protection features according to customer requirements.
Operators can control the main operating procedures from the integrated control panel, helping simplify daily operation and maintenance.
Depending on the project, optional control configurations can also be developed for different automation requirements.
How Does the Bucket-Type Waste Compactor Work?The working process of the Industrial-Grade Bucket-type Waste Compactor can be divided into several basic stages:
The 240L, 660L, or 1100L wheeled garbage bin is moved into the designated loading position in front of the machine.
The hydraulic lifting mechanism connects with the garbage bin and securely supports it.
The hydraulic cylinders drive the lifting structure upward and tilt the garbage bin over the loading hopper. Waste falls directly into the compactor.
After unloading, the lifting mechanism lowers the empty garbage bin back to its normal position.
The hydraulic compression mechanism pushes the waste into the compression chamber, reducing the volume of loose garbage.
Once the waste reaches the required compression level, the compacted material remains inside the storage area until the equipment is ready for unloading or subsequent transportation according to the project configuration.
This integrated process reduces the need for workers to manually lift garbage bags or empty heavy waste bins.
Key Advantages of the Industrial-Grade Bucket-Type Waste CompactorThe machine is designed for demanding waste collection environments and frequent operating cycles.
The lifting system can be customized for 240L, 660L, or 1100L garbage bins, making the machine adaptable to different waste collection standards.
The hydraulic lifting mechanism automatically raises and tips the garbage bin, reducing manual loading work.
Hydraulic compaction significantly increases the density of collected waste and makes better use of available storage capacity.
The integrated lifting and compression functions reduce repetitive manual handling and improve overall waste collection efficiency.
The machine can be customized according to garbage bin size, waste type, required capacity, working environment, power supply, control requirements, and project specifications.
Its heavy-duty configuration makes it suitable for industrial facilities, municipal sanitation projects, commercial areas, and other locations with continuous waste generation.
Customized Configuration for Different ProjectsEvery waste collection project has different requirements. Therefore, the Industrial-Grade Bucket-type Waste Compactor can be customized rather than relying on a one-size-fits-all design.
Customization options may include:
240L / 660L / 1100L bin compatibility
Customized lifting mechanism
Customized hopper dimensions
Customized compression capacity
Customized storage capacity
Hydraulic system configuration
Electrical control system
Automatic or manual operating functions
Customized equipment dimensions
Customized power supply
Safety protection configuration
Surface treatment and color
Customer-specific branding and identification
For projects using non-standard garbage bins, customers can provide drawings, photographs, dimensions, or sample bin information so that the lifting mechanism can be designed accordingly.
A Practical Solution for Modern Waste ManagementThe Customized Heavy-Duty Industrial-Grade Bucket-type Waste Compactor combines robust construction, hydraulic bin lifting, efficient waste compression, and flexible customization in one integrated waste handling solution.
With compatibility for 240L, 660L, and 1100L garbage bins, it can adapt to different municipal, commercial, and industrial waste collection systems. Its heavy-duty design is especially suitable for projects that require reliable operation, reduced manual handling, higher waste storage density, and more efficient waste management.
For customers planning a new waste collection station or upgrading an existing garbage handling system, this Industrial-Grade Bucket-type Waste Compactor provides a flexible foundation for building a more efficient and centralized solid waste management process.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
