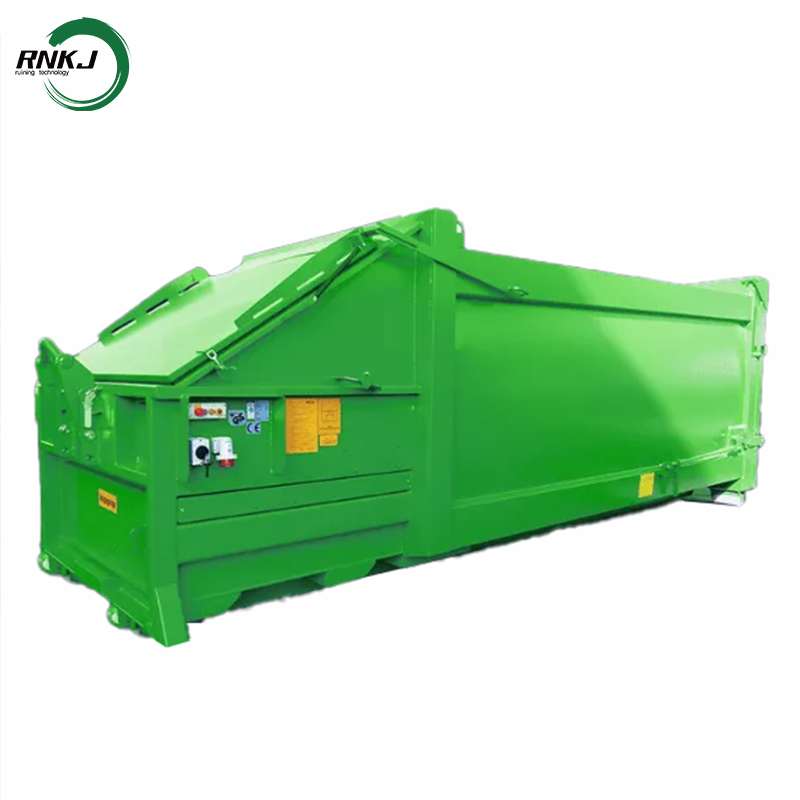

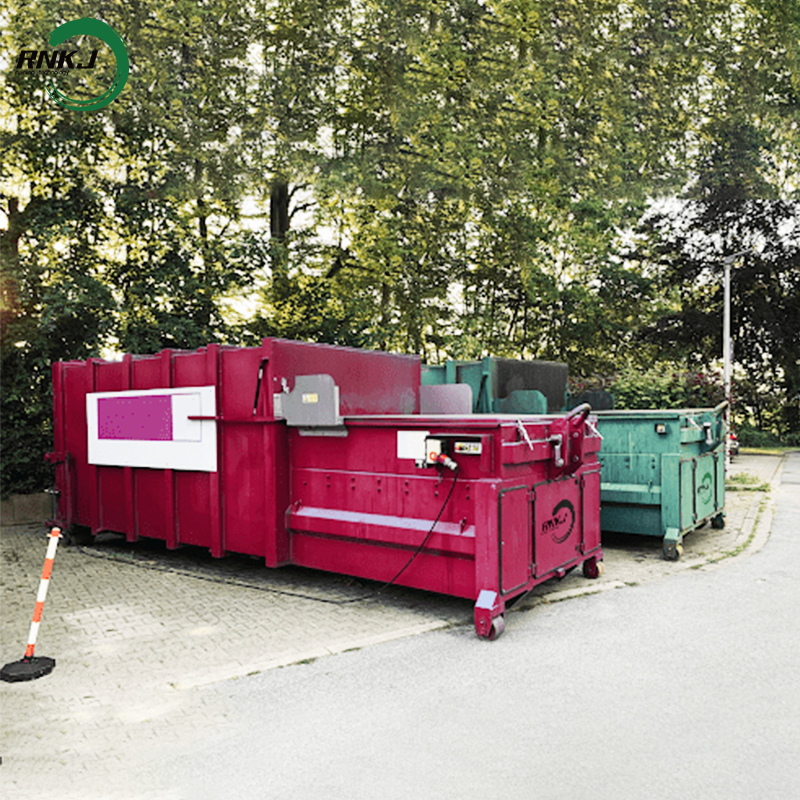

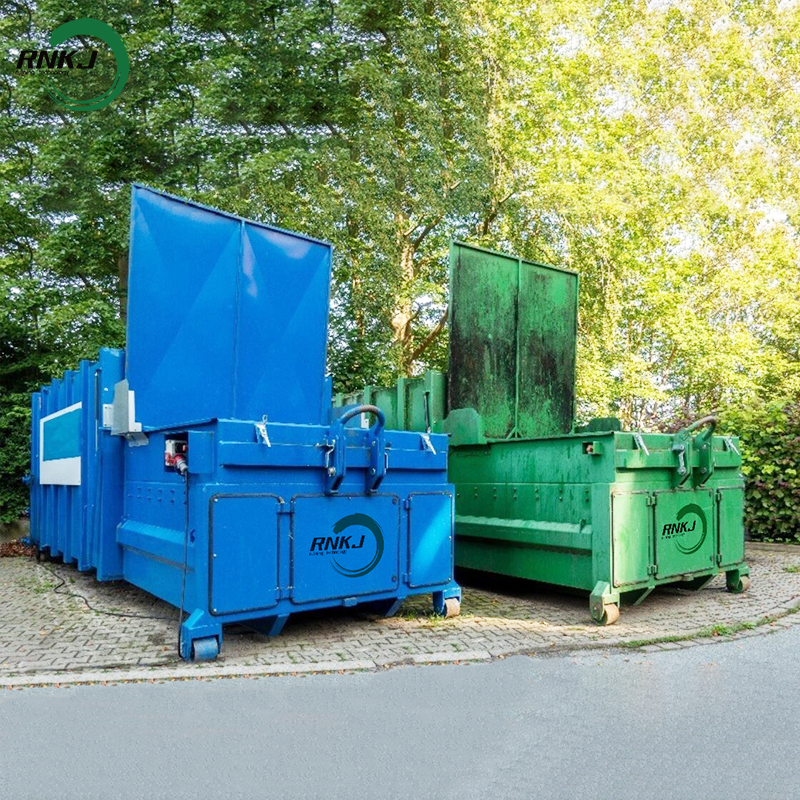

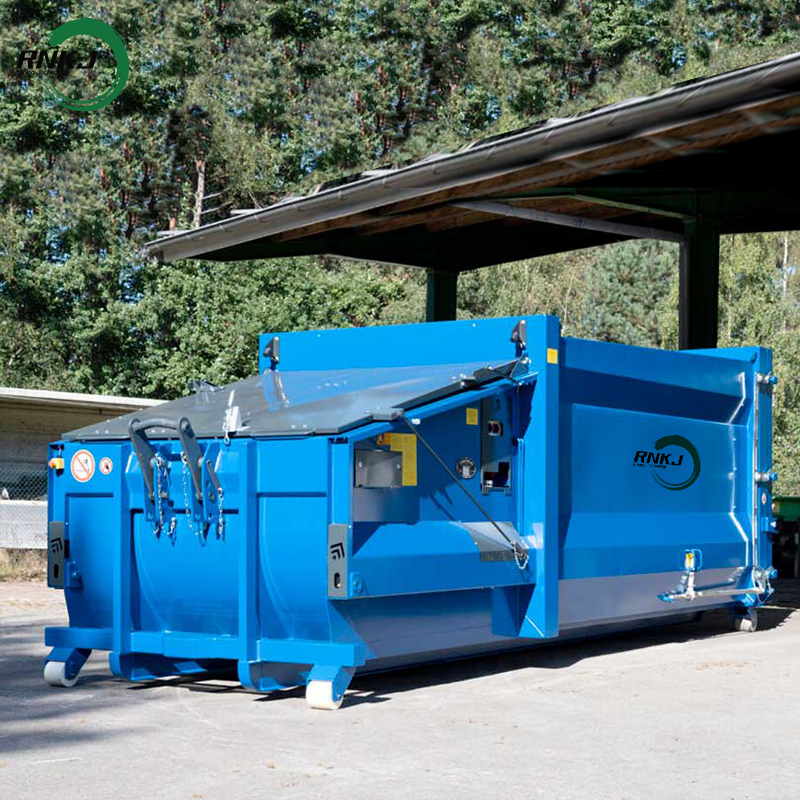

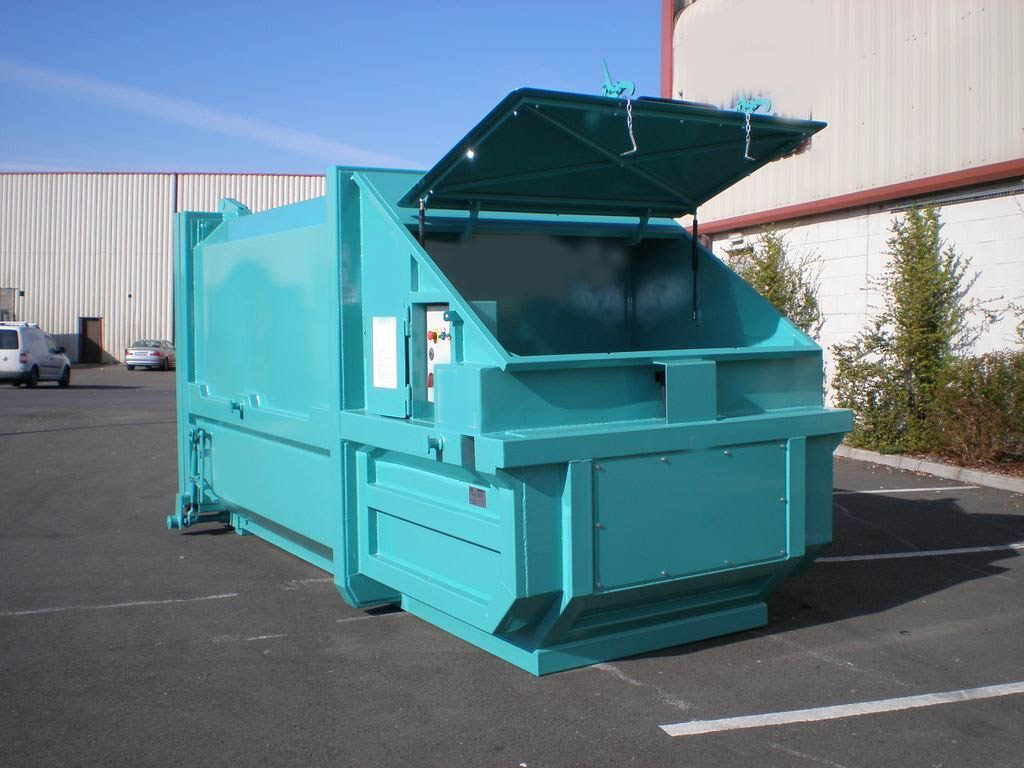

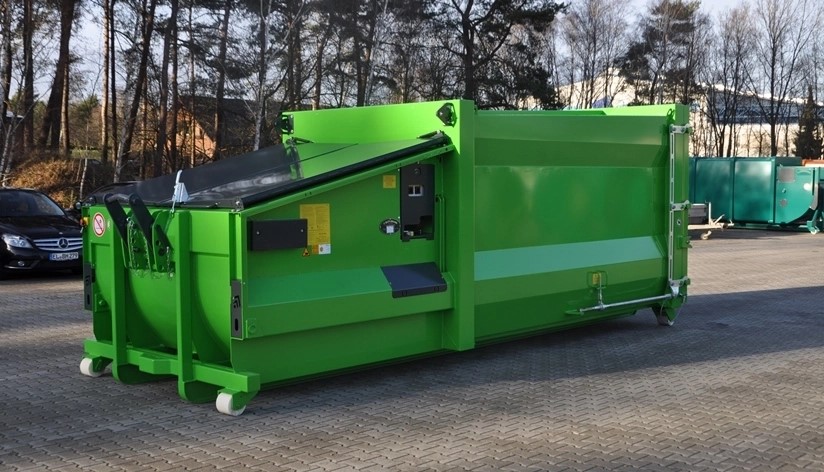

The Mobile Garbage Compression Station is a highly integrated core equipment for environmental sanitation, capable of being dragged as a whole or lifted by a hook. It integrates four functions: garbage collection, hydraulic compression, sealed storage, and rapid transportation. It does not require a fixed foundation; deployment is possible simply by leveling and hardening the ground. It is an efficient and environmentally friendly solution that replaces traditional fixed garbage stations in urban and rural sanitation, scenic areas, construction sites, and large-scale events.
Advantages of Mobile garbage compression station:Mobile garbage compression station are efficient garbage disposal equipment that can effectively reduce garbage disposal costs, save space, reduce workload, and reduce environmental impact.
Core Definition and PositioningThe Mobile Garbage Compression Station is an integrated equipment that reduces the volume of loose household waste and small and medium-sized industrial solid waste through horizontal hydraulic compression technology, and temporarily stores them in fully enclosed containers. Finally, it is transported and moved by a hook-arm vehicle. Its core value lies in volume reduction and efficiency improvement, flexible deployment, and strict control of secondary pollution. It is suitable for modern urban sanitation operation models where garbage is not dumped and is compressed and then transported immediately.
Product AdvantageFlexible adjustment
No need for civil engineering work; the ground can be leveled and hardened for use. The site selection is flexible, suitable for narrow streets, corners of residential areas, scenic spots, vacant land, temporary construction sites, etc., where fixed stations cannot be set up.
It can be quickly relocated. It can be moved to a new location at any time in response to changes in garbage production or adjustments in urban planning.
Efficient capacity reduction, significant cost reduction
High compression ratio, increased single transportation volume, reduced transportation vehicle trips, lower fuel and labor costs.
Automated operation, can be operated by one person, no need for multiple personnel to be on duty, low labor intensity and high efficiency.
Fully enclosed and environmentally friendly, completely eliminating secondary pollution.
The entire process is carried out under closed compression and sealed storage, with concentrated collection of leachate, no dripping or leakage along the way; the odor is controlled through sealing and deodorization systems, no odor diffusion; mosquitoes and flies cannot enter, improving the working environment.
Compliant with the technical specifications of garbage transfer stations and national environmental protection standards.
Intelligent and durable, easy to maintain
The core components are made of high-strength wear-resistant steel with anti-corrosion treatment, capable of withstanding humid and highly corrosive environments, and have a long service life.
PLC intelligent control, automatic fault alarm, easy to troubleshoot; the hydraulic module is designed in a drawer style, making maintenance without disassembling the entire machine possible, and the maintenance cost is low.
High adaptability, covering all scenarios
It can handle domestic waste, commercial waste, garden waste, and small and medium-sized industrial solid waste. It is suitable for all scenarios including residential communities, streets, schools, hospitals, scenic spots, stations, large-scale events, and post-disaster reconstruction.
It can be connected to trolleys, tricycles, small collection vehicles, and boom transfer vehicles, and is compatible with existing sanitation equipment. No additional purchases are required.
Technical ParametersPerformance Parameters | |
Compression: | Horizontal |
Waste bin volume (m³) | 6m³,9m³,12m³,15m³,18m³,Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg): | 4800kg, 5500kg, 6080kg, 6580kg, |
Power supply : | Local working voltage |
Operation mode: | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Working PrincipleLoading and feeding: The sanitation workers use a small collection vehicle to pour the garbage into the hopper. The hydraulic system drives the hopper to rotate, and the garbage automatically enters the compression chamber; or they can directly unload the garbage onto a small collection vehicle.
Cyclic compression: The PLC activates the hydraulic system, and the pusher moves horizontally from back to front, repeatedly squeezing the garbage. Air and filtrate are expelled, reducing the volume of the garbage to one-third of its original size. After compaction, the density is high.
Sealed storage: After compression is completed, the pusher retracts, and the rear door is locked to seal the container. The garbage is temporarily stored in the container in a sealed manner, without any odor or sewage leakage.
Quick transportation: After the box is fully loaded, the hook-arm vehicle arrives for docking. Using hydraulic devices, the entire box is lifted and transported to the transfer vehicle, which then directly transports it to the waste treatment plant. Empty boxes are quickly returned to their original positions and continue to operate, achieving separation of the vehicle and box, and enabling repeated circulation and turnover.
Product Structure CompositionCompression box body
Core load-bearing structure, with a volume range of 8-22 cubic meters. It is made of thickened wear-resistant steel plates, and the inner walls are treated for corrosion resistance. The service life is 8-10 years.
The bottom is equipped with a filtrate collection tank and an outlet. The entire process is sealed to collect sewage, avoiding leakage and pollution.
The rear door is equipped with double lip rubber seals and a mechanical locking mechanism. After compression, it is completely sealed, blocking odors and mosquitoes.
Hydraulic compression system
It adopts a horizontal compression process, with the core components being the hydraulic pump station, pusher head, and high-pressure hose. The compression force and compaction density are high.
The pump station is of a drawer-type modular design, equipped with overload protection and pressure sensors, and can dynamically adjust the compression force, achieving an energy saving of over 30%.
The pusher head adopts a non-grooved small-gap design, made of wear-resistant alloy material, preventing jamming and easy to maintain.
Intelligent control system
Standardly equipped with PLC programmable controller, supporting three modes: fully automatic, semi-automatic and manual. It can start the processes such as compression, flipping, and locking with one click.
Equipped with emergency stop button, limit sensor and fault alarm light. It can monitor pressure, temperature and position in real time. In case of abnormality, it will automatically stop and alarm, ensuring high safety.
Mobile carrying and docking structure
The bottom is equipped with a high-strength chassis and a towing hook. It can be directly placed on the ground, or quickly lifted and replaced with empty containers by a hook-arm type truck.
Environmental protection auxiliary system
Odor removal device: Spray odor removal, inhibiting the spread of odors.
Fly and mosquito prevention facilities: Sealed structure, insect-proof net, eliminating the breeding of mosquitoes and flies.
Leachate treatment: Small pre-treatment module, reducing pollution from sewage discharge.
Application ScenarioUrban and rural communities: Old residential areas, urban villages, townships and villages, addressing the difficulties in selecting fixed garbage disposal sites and the problem of scattered garbage.
Commercial and public areas: Scenic spots, parks, commercial streets, stations, hospitals, schools, ensuring a clean environment and enhancing the experience of tourists/residents.
Temporary and special scenarios: Construction sites, large-scale exhibitions, sports events, post-disaster reconstruction, quickly setting up temporary garbage disposal points, with strong emergency response capabilities.
Waste collection and transportation hubs: Small cities, county towns, industrial parks, replacing small fixed collection stations, flexible and efficient, reducing infrastructure investment.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services.
If you would like to obtain more customized specifications or purchase this garbage compaction station at factory price, please contact us via website message or WhatsApp(+86-18853809997).
