Build an integrated system for underground intelligent collection, sealed compression, and efficient transportation of domestic waste, achieving a full-process closed-loop management of residents' domestic waste from disposal, collection, compression to terminal processing, and solving problems such as odor emission, large land occupation, and secondary pollution in traditional garbage collection.
Based on the entire process of handling residents' household waste, a complete route is designed, including waste collection, intelligent collection, sealed compression, professional transportation, and the waste treatment plant. It is equipped with an underground waste collection system, waste compression stations, and collection and transportation vehicles, suitable for use in various scenarios such as communities, commercial streets, and urban landscape areas, while taking into account environmental protection, practicality, and economy.
Garbage Collection End: Underground garbage collection system + electric collection vehicles, achieving garbage classification and sealed collection;
Garbage Compression End: Nine-cubic-meter hopper-type garbage compression station, underground garbage compression station, completing garbage reduction and compression;
Garbage Transfer End: Boom-type garbage truck, transporting the compressed garbage to the garbage treatment plant.
Underground garbage collection system
Core Function
It adopts an underground concealed design and is equipped with intelligent sensing / foot pedal dual opening discharge ports. It supports garbage classification disposal, without any odor leakage and does not occupy the ground landscape space.
Technical Specifications
Size of the booth: 6400mm × 2300mm × 3000mm
Foundation pit dimensions: 6220mm × 1920mm × 2680mm (deepest depth of the water storage pit)
Volume: 4 × 240L
Total equipment weight: 4950kg
Platform lifting height: 1700mm, lifting time: 20 seconds
Pump station motor power: 2.2kw, working voltage: 220V 50Hz
Lifting weight: ≥5t
Opening method: intelligent sensor opening, foot pedal opening
Garbage Compression Station
This plan is equipped with two types of compression stations: a 9-cubic-meter material hopper type and a 9-cubic-meter landscape underground type. Both adopt horizontal compression technology and are suitable for different site requirements.

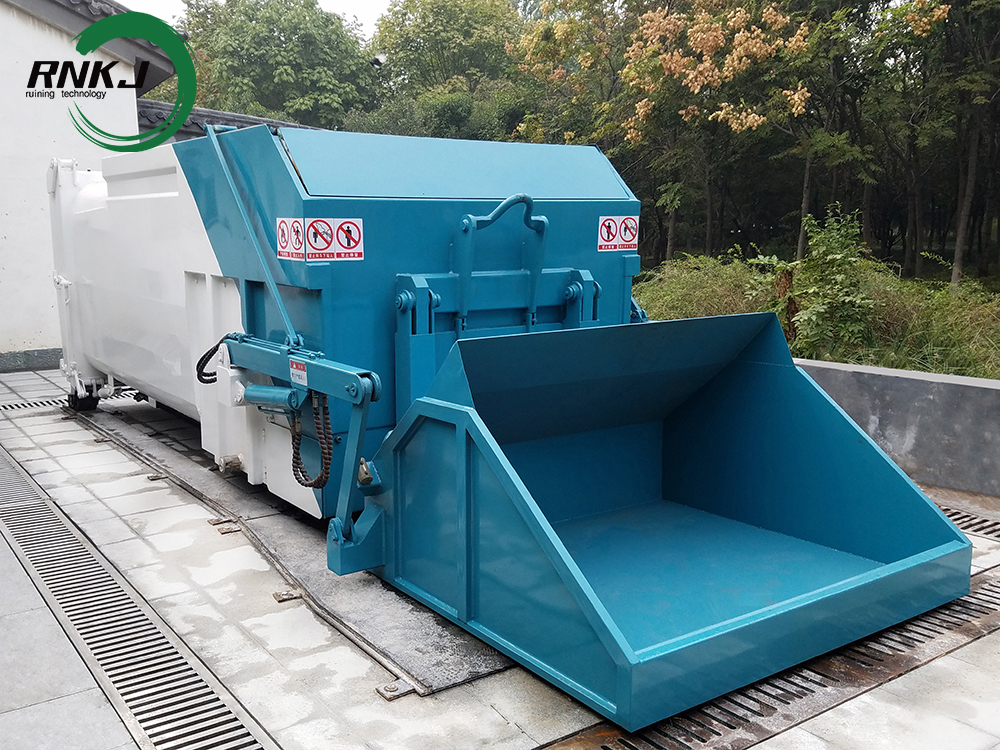

9 Cubic Hopper Garbage Compression Station
Performance Features
Flexible and Efficient: The hopper design enables both residents and collection vehicles to easily dump garbage;
Convenient Space Utilization: Compact in size, suitable for small communities, commercial streets and other areas with limited space;
Environmentally Friendly and Sealed: Strong sealing performance, preventing garbage leakage and odor emission. Equipped with a sewage collection system to eliminate secondary pollution.
Technical Specifications
Compression type: Horizontal compression
Hook height: 1570mm (customizable)
Compression cycle time: 45 seconds
Total weight: 4000kg
Material: Corrosion-resistant manganese steel
Operation mode: Automatic / Manual
Dump bucket volume: 9/10/12/15/18m³ (customizable)
Equipment volume: 6-20m³ (customizable)
Noise: ≤ 70dB (A)

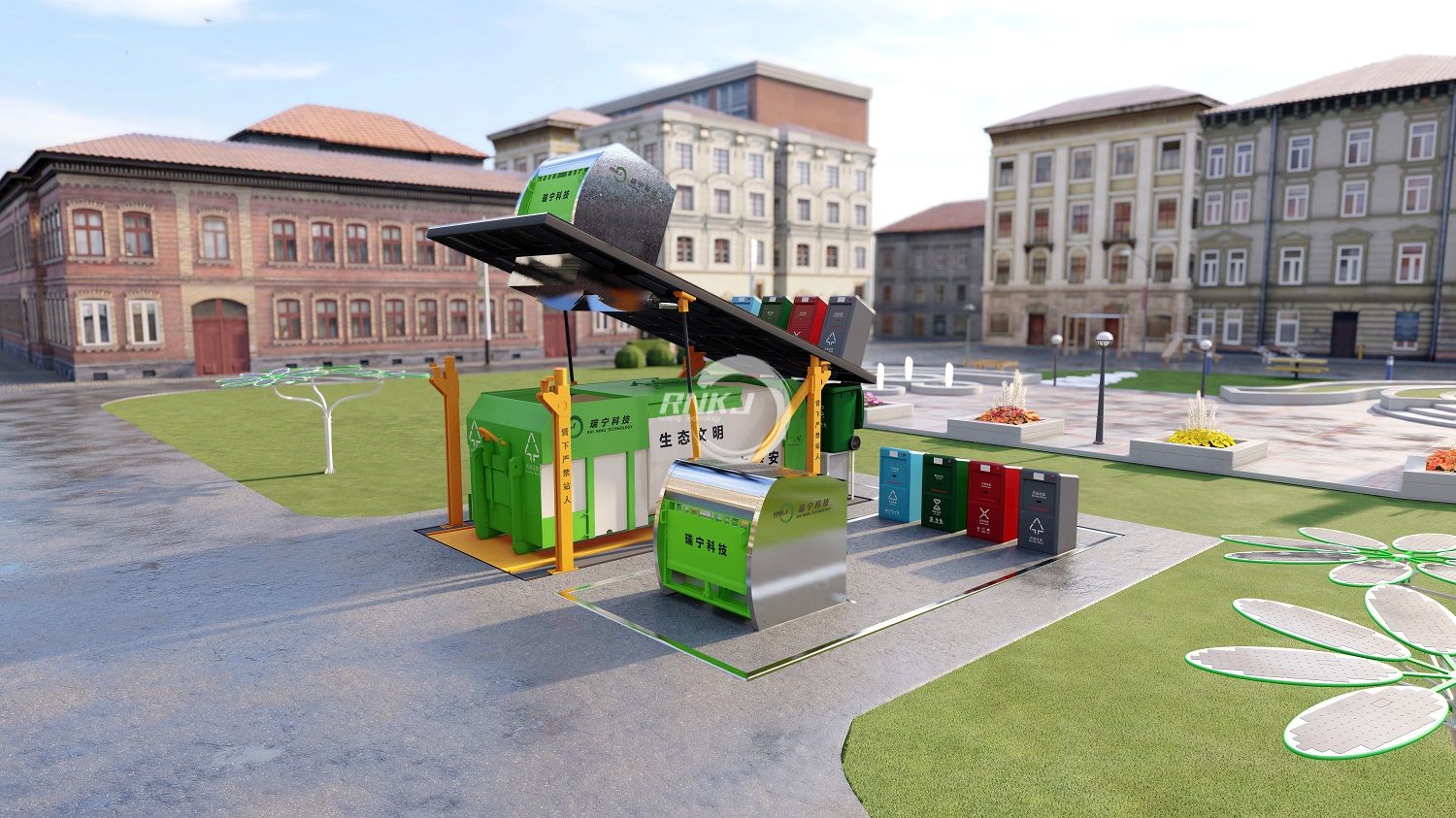

9 cubic landscape underground garbage compression station
Performance features
Retains the advantages of the hopper-type design, such as high efficiency, space-saving and environmental friendliness. It also features a new landscape design, suitable for urban core scenic areas;
Multiple loading ports are available for selection. It supports the installation of 240L/660L garbage bins and can automatically flip and dump the bins.
Technical Specifications
Compression type: Horizontal compression
Hook height: 1570mm (customizable)
Compression cycle time: 45 seconds
Total weight: 4000kg
Material: Corrosion-resistant manganese steel
Operation mode: Automatic / Manual
Holding ports: Multiple options available
Equipment volume: 6 - 20m³ (customizable)
Noise: ≤ 70dB (A)
Complementary collection and transportation vehicles

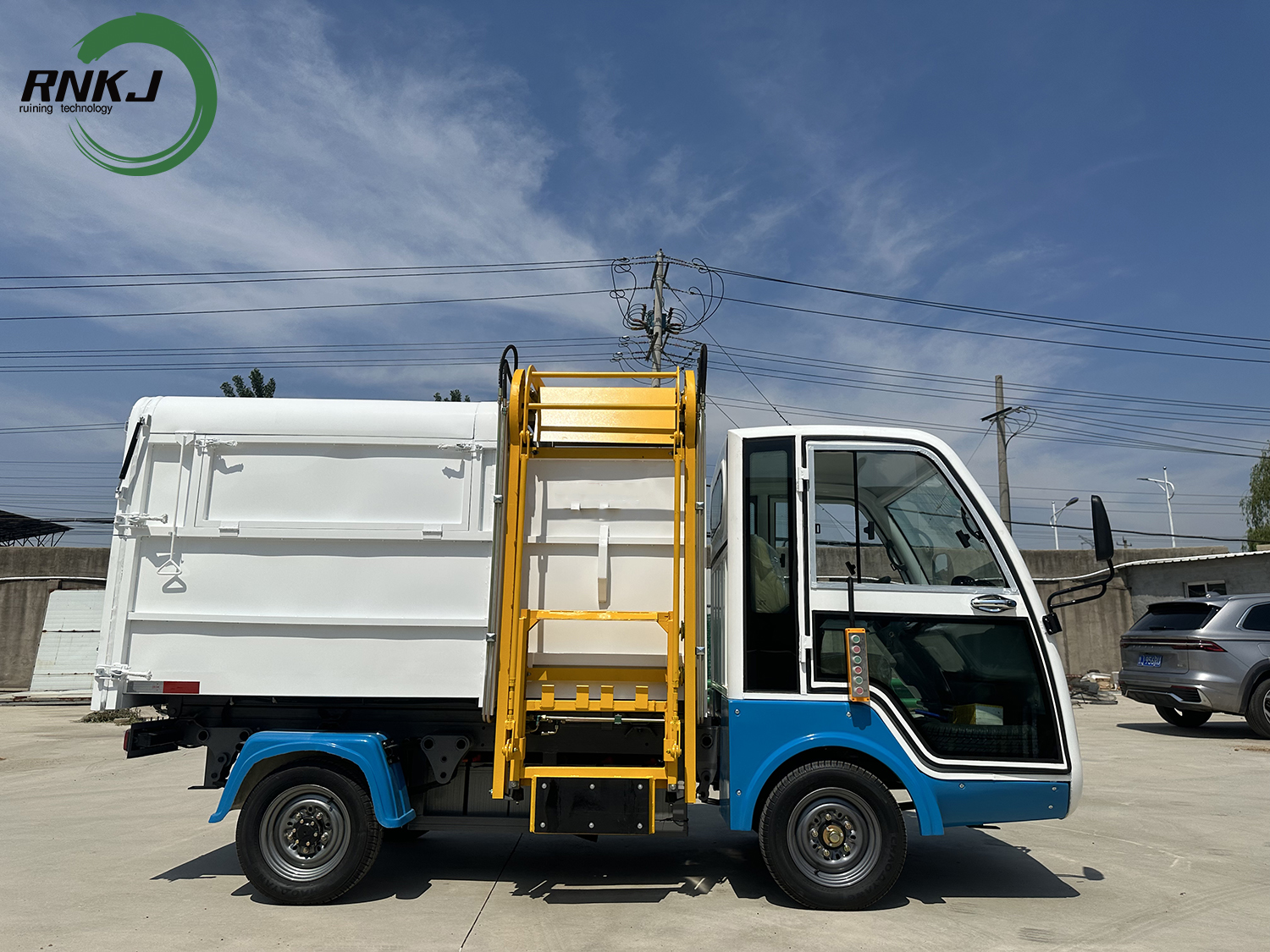

Pure electric four-wheel side-reversing bucket vehicle
Performance features
Side-hung bucket-reversing mechanism, capable of automatically flipping 240-liter standard trash cans;
Anti-leakage device is installed at the rear of the box body to reduce sewage leakage;
Safe lifting cylinder + high-quality hydraulic system, with reliable sealing and safe operation;
Large-section profile chassis, four-wheel hydraulic braking with vacuum assistance, stable load-bearing.
Technical Specifications
Dimensions: 3900mm × 1450mm × 2100mm
Maximum speed: 25 km/h, Range: 80 km
Overall weight: 1800 kg, Slope climbing ability: 15%, Load capacity: 1600 kg
Power: 72V 7.5KW AC motor, 72V 180AH battery
Box: 3 cubic stainless steel material, with compression push plate
Carriage detachable (hook-arm) garbage truck
Performance features
The telescopic hook-arm design enables automatic loading and dumping of garbage bins. One vehicle can be equipped with multiple bins;
Suitable for urban streets, schools, urban domestic waste and construction waste collection and transportation;
High degree of automation, high transportation efficiency. Technical Specifications
Load capacity: 15T, complete vehicle model: 5180ZXX3DF
Overall vehicle dimensions: 7360mm × 2520mm × 3090mm
Overall weight: 7300kg, maximum load capacity: 8250kg, total weight: 18500kg
Chassis model: DFL1140B2-KG2Y-981-012J
Drive type: 4×2, transmission: DF6S900, wheelbase: 4500mm
Garbage collection and transportation operation process
Mode 1: Underground garbage collection system process
Place classified garbage in the intelligent collection ports underground;
Electric bucket trucks collect the garbage from the underground system and transfer it to the garbage compression station;
The compression station performs horizontal compression on the garbage to achieve volume reduction and weight reduction;
15T telescopic trucks transfer the compressed garbage to the garbage treatment plant.
Mode 2: Ground direct compression process
Residents or collection vehicles directly place the garbage in the hopper-type / buried compression station;
The compression station automatically completes the garbage compression;
15T telescopic trucks transfer the compressed garbage to the terminal treatment plant.
Core advantage
Environmentally friendly and pollution-free: Underground / sealed design、sewage collection system, eliminating secondary pollution such as odors and garbage leakage;
High space utilization: Underground equipment does not occupy floor space, and the compression station is small in size, suitable for urban areas with limited space;
Intelligent and efficient: Automated loading, bucket flipping, compression, and transportation, reducing labor costs and improving operational efficiency;
Wide application scenarios: Equipment parameters can be customized, covering multiple scenarios such as communities, commercial streets, scenic areas, and schools;
Low operating costs: Electric vehicles have low energy consumption, and after reducing the volume of garbage through compression, the frequency of transportation is significantly reduced.
