Choosing the right waste compactor is an important decision for municipalities, commercial facilities, industrial sites, residential developments, and public waste management projects. Among the available solutions, underground waste compactors and above-ground waste compactors are two common configurations with different installation requirements, operating characteristics, space demands, and application advantages.
The right choice is not simply about whether the equipment is installed below or above ground. Factors such as available space, waste volume, site layout, collection methods, appearance requirements, accessibility, installation conditions, and future maintenance should all be considered.
This guide explains the key differences between underground and above-ground waste compactors and provides a practical framework for selecting the appropriate configuration for different waste management projects.

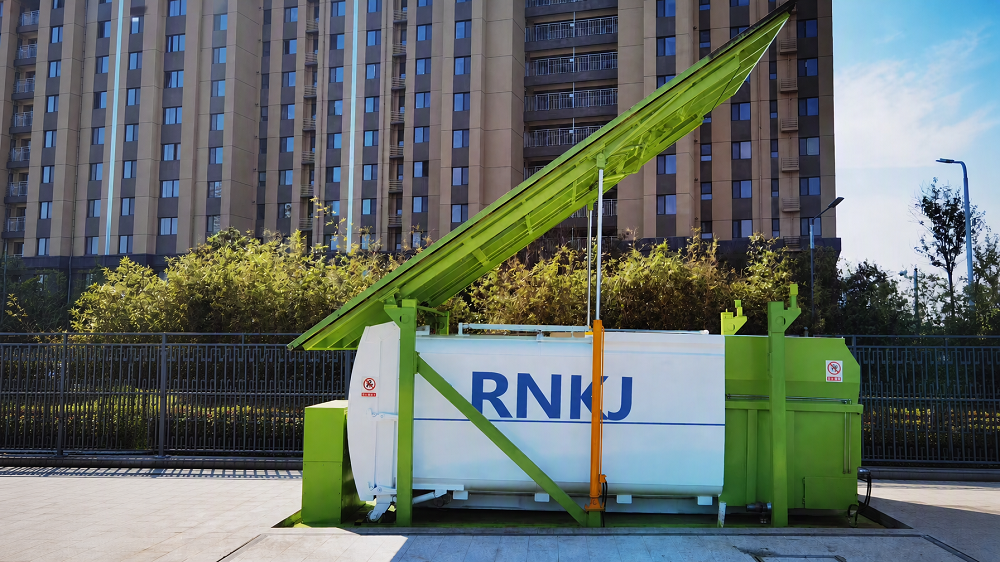

An underground waste compactor is a waste compression system installed partially or completely below ground level. Depending on the design, the compression chamber, waste container, lifting mechanism, or collection structure can be positioned within an underground pit.
Waste is deposited into the designated loading area and transferred into the compression chamber. A hydraulic mechanism then applies controlled pressure to reduce the volume of the waste. The compacted material is stored in a container or transferred to a collection vehicle according to the system configuration.
Underground installation can help make the equipment less visually prominent while making efficient use of limited surface space.
Typical applications include:
Residential communities
Urban waste collection points
Municipal solid waste projects
Commercial complexes
Shopping centers
Hotels and resorts
Parks and landscaped public areas
High-density urban locations
Underground waste collection projects
The exact structure can vary according to project requirements. Some systems emphasize compression and storage, while others integrate lifting, collection, classification, or transfer functions.

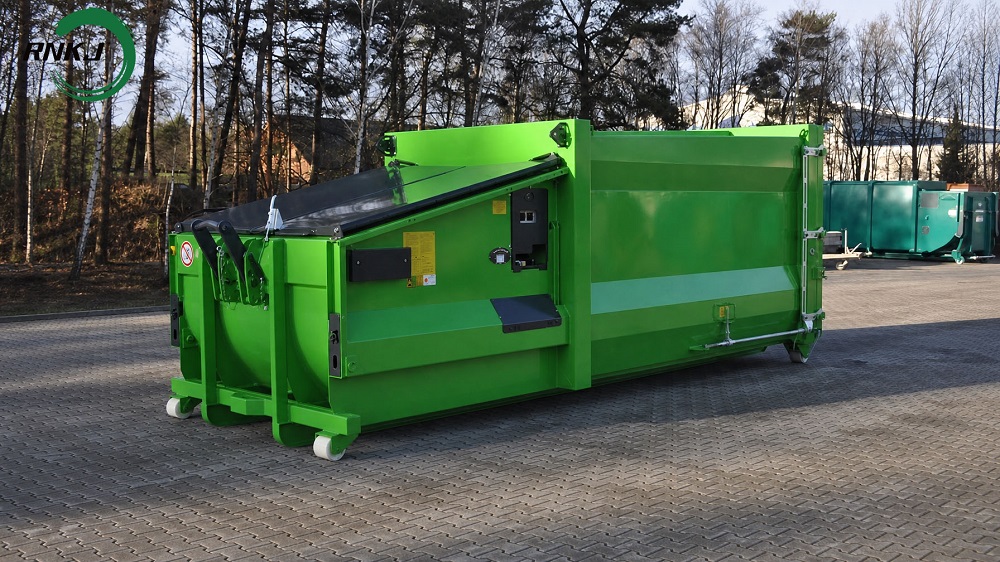

An above-ground waste compactor is installed primarily at ground level, allowing the main compression equipment and collection container to remain accessible from the surface.
This configuration is commonly used where installation simplicity, easy equipment access, flexible positioning, and straightforward maintenance are important considerations.
Depending on the model, an above-ground system may use a hopper, loading opening, garbage bin, compression chamber, hook-lift container, or other loading structure.
Typical applications include:
Industrial facilities
Manufacturing plants
Warehouses
Construction sites
Commercial properties
Municipal transfer points
Large waste-generating facilities
Recycling and waste processing areas
Above-ground compactors are particularly suitable for sites where underground excavation is impractical or where equipment accessibility is a major priority.
Although both systems are designed to improve waste handling and reduce the volume of collected material, their physical layouts and project requirements can be significantly different.
Installation conditions are one of the first factors to evaluate.
An underground waste compactor generally requires sufficient underground space for the equipment, container, lifting mechanism, or compression structure. Depending on the project, civil construction may include excavation, foundation preparation, drainage arrangements, electrical installation, and waterproofing.
An above-ground waste compactor usually requires less underground construction because the primary equipment is positioned on the surface.
Therefore, if a project has strict limitations on excavation or underground construction, an above-ground configuration may be easier to implement.
For new developments or projects where underground infrastructure can be incorporated during construction, an underground system may provide greater layout flexibility.
Related long-tail keywords:
underground waste compactor installation requirements
above-ground waste compactor installation
underground garbage compactor installation
waste compactor site requirements
customized underground waste compactor system
Site space is another important consideration.
An underground system can move part of the waste storage and compression structure below the surface. This can reduce the amount of equipment occupying visible ground space.
This characteristic can be particularly useful in:
Narrow urban areas
Residential communities
Pedestrian zones
Landscaped areas
Commercial plazas
Tourist destinations
Above-ground compactors require more visible space because the main equipment and container are positioned at ground level.
However, above-ground installation can also make the equipment easier to position, relocate, expand, or replace when site conditions change.
For projects where visual appearance is important, the physical configuration of the waste management system can influence the overall environment.
An underground compactor can keep much of the mechanical structure below ground. Some systems can also be integrated with landscaped covers, platforms, or other surface treatments.
This makes underground waste compactors attractive for projects where waste collection equipment needs to blend into its surroundings.
Above-ground compactors are more visible and may require additional screening or enclosure if appearance is a major concern.
This does not mean that above-ground systems are unsuitable for public areas. With appropriate enclosure design and site planning, they can also be incorporated into commercial or municipal environments.
Maintenance accessibility is another major difference.
Above-ground compactors generally provide direct access to the main equipment. Operators and maintenance personnel can inspect hydraulic components, electrical systems, compression mechanisms, and containers without entering an underground structure.
This can simplify routine inspection and maintenance.
Underground systems may require additional consideration for access to mechanical and electrical components. Depending on the design, maintenance personnel may need to use lifting mechanisms or access openings to reach certain components.
Therefore, when selecting an underground waste compactor, the project should consider not only the equipment itself but also:
Maintenance access
Drainage
Waterproofing
Electrical protection
Lifting access
Inspection space
Emergency access
Long-term servicing requirements
Both underground and above-ground compactors can be designed with different storage capacities.
The appropriate capacity depends on:
Daily waste generation
Waste type
Collection frequency
Available site space
Transportation arrangements
Required compression ratio
Peak waste volume
For example, a residential community with high daily waste production may require a larger storage configuration, while a smaller commercial location may use a compact unit.
Rather than choosing a system only according to its nominal container capacity, it is better to calculate the expected waste generation and collection interval.
The connection between the compactor and the waste collection vehicle is particularly important.
Some above-ground systems can be designed around hook lift transportation, allowing the full container or compactor unit to be transferred using a compatible hook lift truck.
Certain underground systems can also incorporate lifting or transfer mechanisms that allow the waste container to be brought to the surface for transportation.
Therefore, buyers should determine the intended transportation method before selecting the equipment.
Important questions include:
What type of collection truck is available?
Is a hook lift truck used?
Does the entire unit need to be transported?
Is the container replaced while the compression equipment remains in place?
How frequently will the container be collected?
Is direct discharge into a waste truck required?
These transportation requirements can influence the preferred compactor configuration.
An underground configuration may be appropriate when the project has strong requirements for space utilization, appearance, or integration with the surrounding environment.
Urban areas with limited surface space
When ground-level space is expensive or restricted, moving part of the waste management system underground can help optimize the site layout.
Residential communities
Underground systems can be incorporated into designated waste collection areas without occupying large amounts of visible surface space.
Landscaped public areas
For parks, resorts, commercial developments, and other visually sensitive locations, an underground configuration can reduce the visual impact of waste equipment.
High-density commercial areas
Shopping centers, hotels, and mixed-use developments may benefit from a waste collection solution that uses underground space efficiently.
Projects requiring customized layouts
Underground systems can be engineered according to site dimensions, waste volume, container configuration, loading requirements, and surface conditions.
An above-ground configuration may be preferable when installation simplicity, accessibility, mobility, or straightforward maintenance is more important than minimizing visible equipment.
Industrial facilities
Factories and production sites often prioritize practical operation and convenient waste handling over appearance.
Warehouses and logistics centers
Large quantities of packaging materials, production waste, and general solid waste can be handled with ground-level compaction equipment.
Sites with limited construction work
If excavation is difficult or the project must minimize civil construction, an above-ground solution may be more practical.
Temporary or changing sites
Some above-ground systems can be easier to relocate when the facility layout changes.
Projects using hook lift transportation
Certain above-ground mobile and hook-lift configurations are designed around container transportation, making them suitable for projects with established hook lift truck infrastructure.
Instead of considering only the installation position, buyers should evaluate the complete operating environment.
| Selection Factor | Underground Waste Compactor | Above-Ground Waste Compactor |
|---|---|---|
| Surface space | Efficient use of surface area | Requires dedicated ground space |
| Underground construction | Usually required | Usually limited |
| Visual impact | Lower visible equipment presence | More visible |
| Maintenance access | Requires planned access | Generally easier |
| Site modification | More construction-intensive | Usually simpler |
| Urban applications | Well suited | Can be suitable with proper enclosure |
| Industrial applications | Suitable | Widely applicable |
| Transportation | Depends on system design | Often convenient for container-based systems |
| Customization | Highly customizable | Highly customizable |
| Installation complexity | Generally higher | Generally lower |
The table should be treated as a general comparison. Actual performance depends on the specific compactor design and project conditions.
Choosing between an underground and above-ground waste compactor should begin with the project rather than the machine.
Determine the approximate amount of waste generated each day.
A basic assessment should consider:
Average daily waste volume
Peak waste generation
Waste density
Waste type
Collection frequency
Seasonal changes
This information helps determine the required compaction and storage capacity.
Measure the available installation area and identify existing infrastructure.
For underground systems, special attention should be given to:
Pit dimensions
Soil conditions
Groundwater
Drainage
Underground utilities
Access for installation equipment
Electrical connections
For above-ground systems, consider:
Equipment footprint
Truck access
Turning radius
Loading area
Container replacement space
Operator working area
Not all waste has the same physical characteristics.
Municipal solid waste, commercial waste, industrial waste, packaging materials, food waste, and other materials can require different loading and compression configurations.
For example, projects handling bulky industrial waste may require a heavy-duty hydraulic compaction system, while residential applications may require a more compact and user-friendly configuration.
The collection vehicle should be considered during the equipment selection stage.
If the site already uses hook lift trucks, the waste compactor and container should be compatible with the existing transportation system.
For projects using direct loading into collection trucks, a different compression and discharge configuration may be more appropriate.
Waste volumes can increase as a facility expands.
A compactor that meets today's requirements may become undersized in several years.
Therefore, buyers should consider:
Future waste generation
Additional buildings
Increased occupancy
Collection frequency
Container capacity
Equipment expansion
A customized system can provide greater flexibility when project requirements are expected to change.
Yes. Customized underground waste compactors can be designed around different project conditions.
Customization may involve:
Overall dimensions
Compression capacity
Storage capacity
Hydraulic system
Loading opening
Container configuration
Lifting mechanism
Waste classification functions
Surface integration
Control system
Safety features
Waste transportation method
For projects with unusual site dimensions or specific municipal requirements, a customized configuration can help integrate the waste compactor into the existing infrastructure.
Yes. Above-ground systems can also be customized according to the waste stream and site requirements.
Common customization options include:
Container volume
Hopper size
Compression force
Hydraulic components
Automatic loading
Bin compatibility
Hook lift configuration
Control system
Protective structure
Material and surface treatment
This means the choice between underground and above-ground equipment does not determine whether a system can be customized. Both configurations can be engineered for specific applications.
There is no universal configuration that fits every waste management project.
An underground waste compactor can be considered when surface space, appearance, urban integration, and underground utilization are major priorities.
An above-ground waste compactor can be considered when easy installation, direct maintenance access, operational flexibility, and convenient equipment handling are more important.
The best selection should be based on a combination of site conditions, waste volume, waste type, collection vehicles, installation requirements, maintenance planning, and long-term operating needs.
For projects with specific dimensions or operating requirements, manufacturers can develop customized waste compactor configurations rather than relying on a standard machine.
Choosing between an underground and above-ground waste compactor requires a project-based evaluation rather than a simple comparison of equipment types.
Underground systems can help optimize surface space and integrate waste collection equipment into urban, residential, commercial, and landscaped environments. Above-ground systems can provide practical installation, convenient maintenance access, and flexible equipment positioning for industrial and commercial applications.
Before making a decision, evaluate the available site, expected waste volume, waste characteristics, transportation method, installation conditions, maintenance requirements, and future expansion plans.
By matching the compactor configuration with the actual operating environment, waste management projects can develop a more practical and sustainable collection and compression solution.
