Choosing the right Hook Lift Mobile Waste Compactor requires more than simply selecting a container capacity. Waste type, daily waste generation, transportation requirements, site conditions, loading methods, truck compatibility, and operating frequency all affect the final equipment configuration.
A properly selected Hydraulic Hook Lift Mobile Waste Compactor can combine waste loading, hydraulic compression, temporary storage, and transportation into one mobile solution. It can be used for municipal solid waste, commercial waste, industrial general waste, community waste collection, and other suitable applications.
This guide explains the key factors to consider when selecting a Hook Lift Mobile Waste Compactor for different waste management projects.

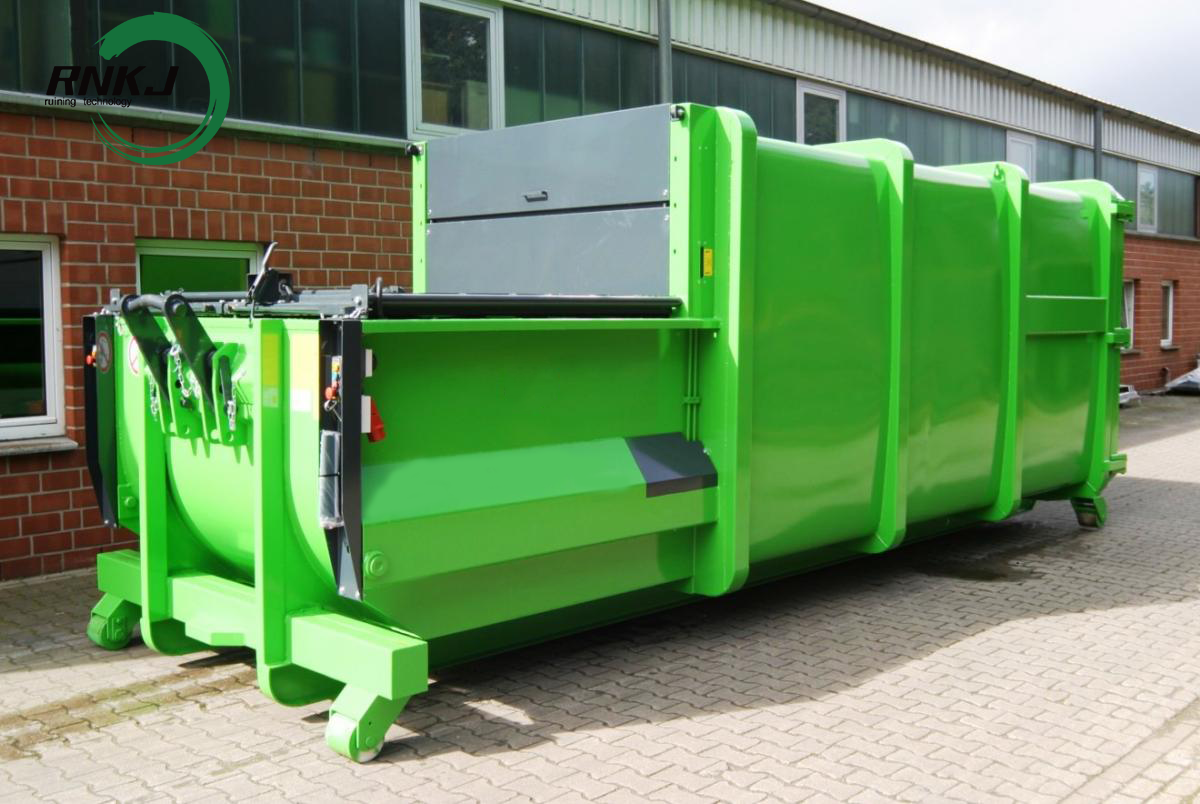

A Hook Lift Mobile Waste Compactor is a mobile waste compression unit designed to collect, compact, store, and transport waste.
Unlike a conventional waste container that mainly provides storage, a mobile waste compactor incorporates a hydraulic compression system. Incoming waste is compressed before being stored inside the equipment.
When the compactor reaches the required filling level, the complete unit can be picked up and transported by a compatible Hook Lift Truck.
The typical operating process is:
Waste Loading → Hydraulic Compression → Compacted Waste Storage → Hook Lift Pickup → Transportation → Waste Discharge
This configuration can be useful for projects that need flexible waste collection points without installing a permanently fixed compaction station.
The first step in selecting a Hydraulic Mobile Waste Compactor is understanding the waste stream.
Different materials have different densities, moisture levels, particle sizes, and compression characteristics. These factors influence the required compression mechanism, structural strength, loading configuration, and storage capacity.
Municipal solid waste generally includes household and community-generated waste. A Mobile Garbage Compactor for Municipal Waste can be positioned at centralized collection points and used to compact waste before transportation.
Shopping centers, hotels, restaurants, office buildings, and commercial complexes may generate a continuous volume of general waste. A mobile compactor can provide a centralized collection and compression point.
Manufacturing facilities and industrial parks may require equipment for packaging materials, general solid waste, and other suitable non-hazardous materials.
For industrial applications, the waste composition should be reviewed before equipment selection. Heavy, abrasive, oversized, hazardous, or unusual materials may require a different configuration.
Some non-hazardous construction-related waste can potentially be processed by a mobile compactor. However, large concrete pieces, steel sections, hazardous materials, and oversized objects should not be treated as standard compactable waste without confirming equipment suitability.
Understanding the waste type helps determine the appropriate Hook Lift Waste Compactor configuration.
Capacity is another major consideration when choosing a Hook Lift Mobile Waste Compactor.
Instead of selecting capacity based only on the physical size of the collection area, evaluate:
Daily waste generation
Peak waste generation
Waste density
Collection frequency
Transportation distance
Available operating space
Required storage time
For example, an 8 CBM Mobile Waste Compactor may be suitable for a smaller collection point, while larger-capacity equipment may be more appropriate for high-volume commercial or industrial applications.
However, nominal capacity should not be considered the same as usable compacted capacity. Actual loading performance depends on the type and condition of the waste and the compression system.
A practical capacity assessment should therefore consider both the amount of waste generated and how frequently the compactor will be transported.
The compression system is the core working mechanism of a High Compression Mobile Waste Compactor.
Hydraulic cylinders drive the compression mechanism to push waste into the storage chamber. The required compression performance depends on the characteristics of the waste and the project's transportation requirements.
When evaluating a hydraulic waste compactor, consider:
Required compression force
Hydraulic system configuration
Compression chamber dimensions
Compression cycle
Waste characteristics
Operating frequency
Expected daily throughput
A higher compression specification is not automatically necessary for every application. The equipment should be configured according to the actual waste stream rather than selecting the largest available hydraulic system.
For municipal and commercial applications, the objective is generally to achieve suitable waste compaction while maintaining reliable and repeatable operation.
One of the most important factors when purchasing a Hook Lift Mobile Waste Compactor is compatibility with the transportation vehicle.
The compactor and Hook Lift Truck must work as a complete handling system.
Before placing an order, confirm important truck and compactor parameters such as:
Hook height
Overall equipment length
Container dimensions
Maximum loading weight
Truck lifting capacity
Hook lift system specifications
Hydraulic or mechanical interface
Rear clearance
Ground clearance
Loading and unloading requirements
The complete mobile waste compactor is lifted and transported by the compatible Hook Lift Truck. Therefore, the compactor should be designed around the actual truck specifications whenever possible.
For customized projects, customers should provide the Hook Lift Truck model or technical drawings so that the equipment interface can be properly matched.
This is particularly important when selecting a Hydraulic Hook Lift Mobile Waste Compactor for Municipal Waste or industrial applications where the unit will be moved frequently.
The loading method should correspond to how waste is collected at the project site.
Different projects may use different waste feeding methods, including:
Manual waste loading
Waste bins
Garbage carts
Hoppers
Transfer equipment
Mechanical lifting systems
Customized feeding systems
For example, a municipal waste collection point may require a configuration that works with commonly used waste bins, while an industrial facility may require a larger loading opening for bulk general waste.
The loading opening should also be considered together with:
Available installation space
Waste collection equipment
Operator access
Safety requirements
Loading frequency
A suitable loading design makes the Mobile Garbage Compactor easier to integrate into an existing waste collection process.
Although a Mobile Waste Compactor is designed for transportation, it still requires a suitable operating area.
Before selecting equipment, check:
Measure the length, width, and height available for the compactor.
Consider not only the equipment footprint but also the space required for waste loading and Hook Lift Truck operation.
The installation surface should be suitable for supporting the loaded equipment and the truck during loading and unloading.
The Hook Lift Truck must have sufficient access to approach, load, unload, and remove the compactor.
Outdoor installations may require additional consideration for weather exposure, drainage, corrosion protection, and electrical protection.
Site conditions can directly influence the dimensions and configuration of a customized Hook Lift Mobile Waste Compactor.
Transportation distance is another factor that should be included in the equipment selection process.
If the waste disposal facility is relatively close to the collection point, a smaller compactor with frequent transportation may be practical.
If the transportation distance is longer, maximizing the usable storage volume and suitable compaction performance may become more important.
Consider:
Distance from collection point to disposal facility
Number of daily collection cycles
Truck availability
Waste generation rate
Compacted waste density
Loading and unloading time
The objective is to select a configuration that fits the complete collection and transportation process rather than evaluating the compactor separately from the truck.
Hook Lift Mobile Waste Compactors are available in different capacities and configurations.
Common capacity considerations include:
An 8 CBM High Compression Hydraulic Hook Lift Mobile Waste Compactor can be considered for smaller municipal collection points, commercial sites, communities, and projects with moderate waste generation.
Medium-capacity configurations can provide additional storage volume for municipal, commercial, and industrial applications where waste generation is higher.
Large-capacity models can be considered for centralized waste collection points, industrial facilities, and applications requiring greater storage volume between transportation cycles.
The actual capacity should be selected according to waste generation and collection frequency rather than simply choosing the largest available model.
Waste may contain moisture and liquids, particularly in municipal and food-related waste streams.
For these applications, the structure of the Mobile Waste Compactor should be evaluated for:
Enclosed storage
Sealing design
Drainage
Leakage control
Door or discharge sealing
Corrosion protection
A suitable sealed structure can help create a cleaner waste collection environment and reduce the risk of liquid leakage during temporary storage and transportation.
The required sealing configuration should be determined according to the waste type and local operating conditions.
The control system determines how operators interact with the hydraulic compaction equipment.
Depending on the project, the Hydraulic Mobile Waste Compactor can be configured with different control components, such as:
Start/stop controls
Hydraulic controls
Limit switches
Emergency stop devices
Sensors
Automatic operating sequences
PLC control systems
For projects with frequent operation or more complex feeding systems, an automated or PLC-controlled configuration may be considered.
For simpler collection points, a more straightforward control system may be sufficient.
The control configuration should balance operating requirements, maintenance considerations, and project budget.
A mobile waste compactor operates in a demanding environment, so maintenance should be considered before purchasing the equipment.
Important components include:
Hydraulic cylinders
Hydraulic pump
Hydraulic valves
Hydraulic hoses
Compression mechanism
Electrical components
Sensors
Sealing components
Structural wear areas
When selecting a Hook Lift Waste Compactor, ask the supplier about maintenance procedures, recommended inspection intervals, spare parts availability, and technical support.
For high-frequency municipal or industrial applications, easy access to serviceable components can be particularly important.
Not every waste collection project can use a standard configuration.
A Customized Hook Lift Mobile Waste Compactor can be designed around specific project requirements.
Possible customization options include:
Storage capacity
Overall dimensions
Hook height
Hook lift interface
Loading opening
Compression mechanism
Hydraulic system
Motor configuration
Electrical control system
PLC control
Sealing structure
Discharge method
Steel material
Surface treatment
Safety components
Customization is particularly useful when the customer already has a Hook Lift Truck and needs the compactor to match an existing transportation system.
When comparing different Mobile Waste Compactors, do not focus only on the purchase price.
A complete evaluation should include:
Equipment capacity
Compression performance
Truck compatibility
Loading method
Transportation requirements
Maintenance
Spare parts
Site conditions
Expected operating frequency
Customization requirements
Waste type
The most suitable configuration is the one that fits the entire waste collection, compression, storage, and transportation process.
There is no universal capacity that fits every project.
A basic selection process can be organized as follows:
Step 1: Identify the waste type.
Step 2: Estimate average and peak daily waste generation.
Step 3: Determine how frequently the unit will be transported.
Step 4: Review the waste density and compression characteristics.
Step 5: Check the available installation and truck-access space.
Step 6: Confirm Hook Lift Truck specifications.
Step 7: Select the approximate compactor capacity.
Step 8: Determine loading, sealing, hydraulic, and control requirements.
Step 9: Review customization requirements.
Step 10: Confirm the final technical configuration with the manufacturer.
This process helps prevent selecting a compactor based only on nominal capacity.
A Hook Lift Mobile Waste Compactor is designed for projects that require both waste compression and flexible transportation.
Its main characteristics include:
Hydraulic waste compression
Mobile operation
Integrated waste storage
Hook lift transportation
Flexible deployment
Multiple capacity options
Customizable configurations
Compatibility with municipal and commercial waste collection systems
The complete unit can be transported by a compatible Hook Lift Truck, allowing the waste collection equipment to move between collection and disposal locations.
This makes the system particularly relevant to decentralized waste collection operations and projects where a permanent waste compaction station is not required.
Choosing the right Hook Lift Mobile Waste Compactor should start with the waste stream and operating requirements rather than the equipment model alone.
The key questions to answer are:
What type of waste will be processed?
How much waste is generated each day?
How often will the compactor be transported?
What capacity is required?
What Hook Lift Truck will be used?
What loading method is required?
What are the site dimensions and access conditions?
Is additional sealing, automation, or customization required?
Once these factors are established, the manufacturer can recommend a suitable configuration based on the actual project requirements.
For projects requiring a compact and flexible waste collection solution, an 8 CBM High Compression Hydraulic Hook Lift Mobile Waste Compactor can be considered where its capacity, truck compatibility, loading arrangement, and hydraulic configuration match the project conditions.
