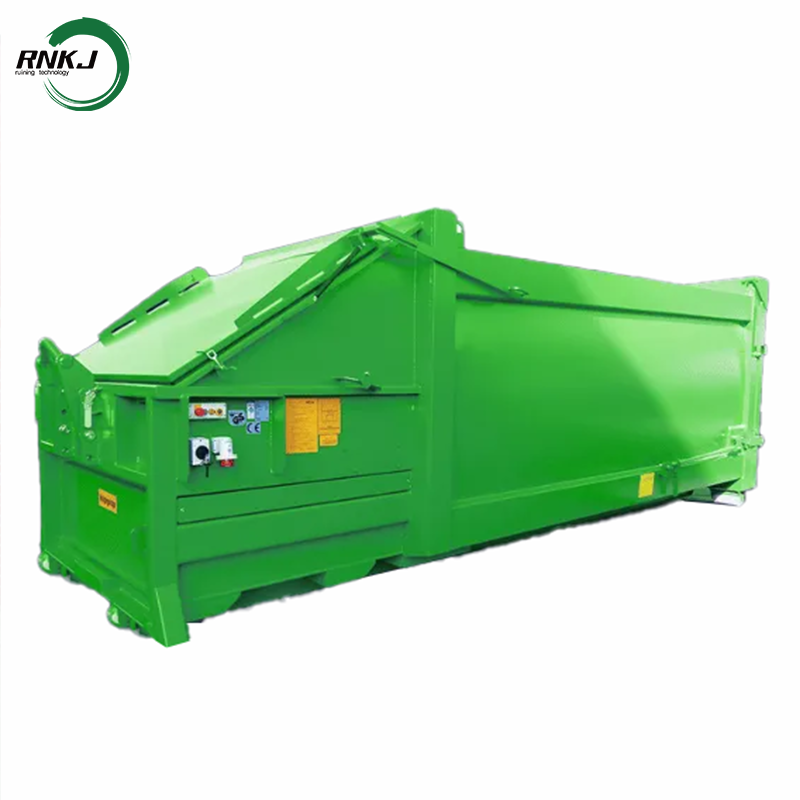

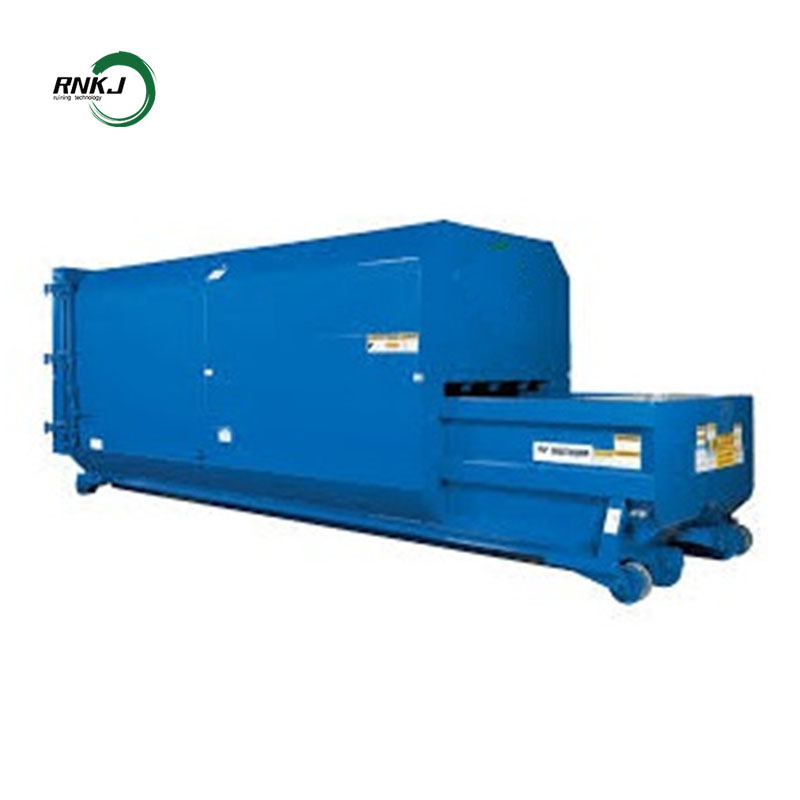

The Heavy-Duty Mobile Garbage Compactor consists of a compacting unit and a garbage container. Operators require no additional knowledge or experience, as the device operates in automatic mode and can be activated with the touch of a button.
Heavy-Duty Mobile Garbage Compactors are popular and widely used in various fields. In my country, the number of compacting garbage compactors is growing annually. Many public utilities have recognized their advantages and continue to actively use them.
Heavy-Duty Mobile Garbage Compactors are used to compress a variety of recyclables.
Due to their small size and the lack of installation requirements, Heavy-Duty Mobile Garbage Compactors are commonly used in local waste collection and disposal locations with limited space, such as supermarkets, shopping malls, business centers, exhibition centers, hospitals, restaurants, hotels, public utilities, and catering establishments.
Product AdvantageUniversal for multiple types of garbage:
It can handle household garbage (kitchen waste, paper, plastic bottles), commercial garbage (packaging materials, fabrics), industrial waste (light metals, foam), biomass garbage (garden branches and leaves, crop straw), etc., without changing equipment for specific types of garbage.
For example: community garbage stations can compress kitchen waste and handle express packaging waste, with one machine for multiple uses.
Adaptable compression mechanism:
Adjustable compression parameters (such as pressure and compression frequency) are used, and through hydraulic or mechanical transmission systems, it can gently handle fragile glass products and strongly compress hard plastic bottles to avoid excessive breakage or insufficient compression.
Application scenarios of mobile garbage compactors:
Commercial facilities: such as hotels, shopping malls, office buildings, etc., can effectively handle a large amount of commercial garbage.
Hospitals: Medical waste in hospitals requires special treatment, and mobile garbage compactors can help compress and process medical waste.
Schools: The amount of garbage in schools is also large, and mobile garbage compactors can help schools effectively deal with garbage.
Construction sites: The amount of garbage generated at construction sites is also large, and mobile garbage compactors can help construction sites deal with garbage.
Parking lots: Parking lots can install mobile garbage compactors to compress and process garbage in parking lots.
Core Structure And MaterialHigh-strength sealed box
Material: Made of thickened high-quality steel, formed by overall welding. Key stressed areas are additionally reinforced. It is resistant to impact, deformation, corrosion, has a long service life, far exceeding that of ordinary lightweight compressors.
Volume: Standard specifications are 12m³ - 22m³. Customization is available according to requirements. The box has a square and large capacity design, balancing loading capacity and mobility flexibility. It can handle 10 - 18 tons of garbage in a single operation.
Sealing: Fully sealed welding process, combined with imported wear-resistant sealing strips + independent locking mechanism. This prevents garbage leakage, odor diffusion and leakage of filtrate, completely solving the problem of secondary pollution.
Heavy-duty Hydraulic Compression System
Compression Method: Horizontal high-pressure compression, suitable for heavy-duty garbage compression needs, different from the small-sized compression structure of light equipment.
Hydraulic Configuration: Equipped with high-pressure high-flow hydraulic pump, telescopic cylinder. The maximum compression force can reach 40-80 tons. The push head is made of thick steel plate, which is wear-resistant and impact-resistant, capable of compressing heavy-duty garbage such as cardboard, wooden pallets, and industrial waste.
Compression Efficiency: The cycle compression time is ≤ 25 seconds. The compression ratio is high, the garbage is compressed to a high density, significantly reducing the volume and improving the transfer efficiency.
Intelligent Control System
Control Mode: Integrated operation of PLC intelligent centralized control, touch screen, wireless remote control, and buttons. One-click to start automatic compression cycle. Supports remote control, reducing manual contact and enhancing operational safety.
Intelligent Functions: Equipped with load sensing technology, which can automatically adjust the compression force and speed according to the hardness and density of the garbage. It runs quickly in empty load and strongly compresses in loaded condition, saving up to 30% energy; Equipped with pressure sensors, liquid level sensors, and temperature sensors, which monitor the operating status of the equipment in real time. Overload automatically protected, faults automatically alarmed.
Moving and Loading Mechanism
Moving chassis: Equipped with wheels, it can be quickly moved and transferred by telescopic arm vehicles or traction vehicles without the need for a fixed foundation. It is adaptable to frequent changes in the site environment.
Loading compatibility: Standardly equipped with a large-capacity hopper, it supports bucket loading, side flip loading, platform docking loading. It can directly connect to standard trash cans, small collection vehicles, and manual carts, suitable for various loading scenarios, eliminating the need for manual secondary transportation.
Technical ParametersPerformance Parameters | |
Compression: | Horizontal |
Waste bin volume (m³) | 6m³， 9m³,12m³ ，,15m³ ,18m³，Custom sizes |
Hook centre height (mm) | 1570 |
Density of compressed rubbish block(kg/m³) | 750kg/m³ |
Compression cycle time (s) | 45s |
Max. lifting force of tipping bucket | 1t,1.5t,2t,2.5t,2.5t |
Tipping bucket volume (m³) | 1.5m³,2.5m³,3.2m³,4.1m³,4.1m³ |
Rated power of motor(kW) | 5KW, 5.5KW, 7.5KW |
Machine weight (kg): | 4800kg, 5500kg, 6080kg, 6580kg, |
Power supply : | Local working voltage |
Operation mode: | automatic + manual |
Size | 6m³: 4180 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 9m³: 5080 * 2440 * 2600 (mm); Tipping bucket falling height 2410mm. 12m³ :4180 * 5280 * 2600 (mm); Tipping bucket falling height 2410mm. |
Product UsesCommunity garbage room: handles mixed domestic garbage, compresses it and then transfers it uniformly by sanitation vehicles, reducing odor in the garbage room and the breeding of mosquitoes and flies;
Small factories: compress plastic waste and paper waste at the same time, reduce warehouse stacking space, and improve the cleanliness of the workshop;
Township garbage transfer station: as the main equipment, it handles rural mixed garbage (kitchen waste + agricultural waste + packaging waste) and reduces the cost of transportation.
FeatureHeavy-duty compression, efficient volume reduction - significantly reducing transportation costs
High-torque hydraulic system, capable of handling mixed waste easily, with industry-leading compression ratio, reducing the volume of garbage, significantly reducing the number of transport trips, fuel consumption and labor costs, and saving operational expenses.
Large-capacity container, customizable from 12 to 22 m³, double the loading capacity per time, reducing the frequency of transportation, improving operational efficiency, especially suitable for commercial areas and industrial zones with high garbage production.
Fully enclosed and environmentally friendly, eliminating secondary pollution - The preferred choice for green sanitation
The fully sealed box and anti-leakage design ensure that garbage does not land, there is no leakage, and no odor spreads. This completely solves the problems of traditional garbage transportation, improves the working environment, and complies with global environmental emission standards.
An independent leachate collection box collects and treats wastewater centrally, avoiding pollution of soil and water sources; The low-noise hydraulic system has low operating noise, suitable for sensitive areas such as residential areas and scenic spots.
Flexible movement, quick installation - Suitable for various scenarios, with extremely high cost-effectiveness
No need for fixed website construction or infrastructure investment. The built-in chassis enables it to be moved at any time and can be installed at garbage collection sites such as communities, construction sites, scenic spots, and event sites.
Multi-functional use. It can directly be transported to the garbage disposal plant for unloading without the need for secondary transfer, simplifying the operation process and improving the transfer efficiency.
Durable and reliable, intelligent and hassle-free - Long-term stable operation, low maintenance cost
Key components are made of thickened wear-resistant materials and imported brand components, including hydraulic valves, seals, motors, etc. They are resistant to corrosion, impact and wear, suitable for harsh working conditions such as humidity and corrosiveness, with long service life and low failure rate.
PLC intelligent control system, with high automation level, simple operation, and ordinary workers can get started with simple training; real-time fault monitoring + remote diagnosis, convenient maintenance, significantly reducing downtime and maintenance costs.
Safe and reliable, compliant and up to standard - Global universal, suitable for international markets
Multiple safety protection designs ensure the safety of operators.
Voltage, frequency, material, color, and loading methods can be customized to adapt to different national working conditions and standards, meeting the customized needs of global customers.
The Heavy-Duty Mobile Garbage Compactor boasts five core advantages: heavy-duty compression, fully enclosed environmental protection, flexible mobility, robust durability, and intelligent safety. As a result, it has become the preferred equipment for global sanitation and industrial waste management.
We are a professional manufacturer of sanitation machinery, providing customers with ex-factory prices and on-demand customization services. You can contact us via WhatsApp or email.
