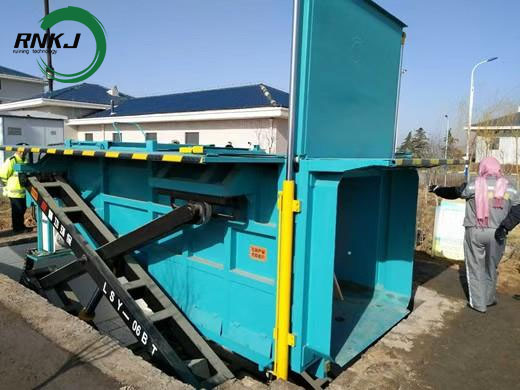

An Underground Horizontal Garbage Compactor is a waste compaction system designed to collect and compress waste in an underground installation area. It combines a horizontal compression chamber, a hydraulic pushing mechanism, an underground structure, and a waste discharge system to help manage large volumes of waste while keeping most of the equipment and collected waste below ground level.
Unlike conventional above-ground garbage compactors, an underground horizontal garbage compactor is designed to make better use of available surface space. The underground installation helps reduce the visible presence of waste collection equipment and supports a cleaner, more organized environment in residential communities, commercial facilities, public spaces, and municipal waste collection areas.
The horizontal compression structure is an important feature of this equipment. Waste enters the compression chamber and is compacted through a horizontal hydraulic pushing process. After compression, the compacted waste can be pushed toward a waiting collection truck or transferred through the configured discharge arrangement.
For projects that require efficient waste collection, space-saving installation, and convenient waste transportation, an underground horizontal garbage compactor can be a practical solution.
An underground horizontal garbage compactor consists of several coordinated components. Each component plays a specific role in waste collection, compression, storage, or transfer.
The underground structure provides the installation space for the compaction equipment and related waste collection components. By positioning the main equipment below ground level, the system can reduce the amount of surface space occupied by conventional waste handling facilities.
The installation layout depends on the project site, equipment dimensions, waste collection requirements, and local construction conditions. Before installation, the available underground space, foundation requirements, drainage arrangements, and maintenance access should be evaluated.
The horizontal compression chamber is the main working area where waste is collected and compacted. Its horizontal layout allows the hydraulic pushing mechanism to move waste along a defined direction.
The chamber must be designed according to the expected waste type, loading method, required capacity, and discharge arrangement. Structural strength, wear resistance, and access for inspection are important considerations when selecting an underground horizontal garbage compactor.
The hydraulic system provides the force required to compress and move waste. Hydraulic cylinders drive the pushing mechanism, applying pressure to the waste inside the compression chamber.
During operation, the waste is pushed forward in a controlled direction. As additional waste enters the chamber, the system can continue the compaction process according to its design and operating sequence.
The hydraulic configuration should be selected according to the equipment size, waste characteristics, operating frequency, and required compaction performance.
After compression, the compacted waste needs to be transferred for transportation and disposal. In an underground horizontal garbage compactor, the horizontal pushing mechanism can move the compacted waste toward a waiting waste collection truck, depending on the equipment configuration.
The discharge arrangement should be considered during the project design stage. The equipment layout, truck positioning, discharge height, and collection vehicle dimensions all influence how efficiently the system operates.
The electrical control system coordinates the hydraulic components and operating sequence. Depending on the selected configuration, it may include control panels, operating buttons, sensors, and safety interlocks.
A properly configured control system helps operators manage the compaction cycle and perform routine operations more conveniently. Specific automation functions and safety features should be confirmed with the manufacturer before ordering.
The working principle of an underground horizontal garbage compactor is based on hydraulic compression and directional waste pushing.
Although operating sequences vary between equipment models, the general process includes the following stages.

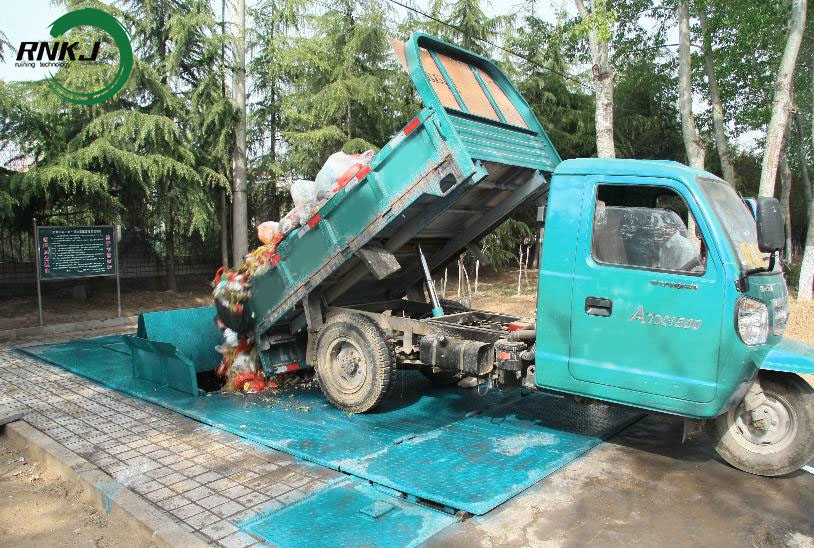

Waste is delivered to the designated feeding area through the project's collection arrangement. The feeding method depends on the site layout and the type of waste collection equipment connected to the compactor.
The collected waste enters the horizontal compression chamber, where it is positioned for compaction. The chamber provides a defined space for the hydraulic pushing mechanism to process the waste.
The hydraulic cylinder drives the pushing mechanism forward, compressing the waste horizontally. This process reduces the volume occupied by suitable waste materials and helps increase the amount of waste that can be handled within the system.
Actual compaction performance depends on waste composition, moisture content, material flexibility, and the equipment's hydraulic configuration.
Following compression, the waste is pushed toward the designated discharge position. In configurations designed for direct truck loading, the compacted waste is pushed toward a waiting collection vehicle for transfer.
The exact loading procedure depends on the equipment structure and the truck used by the waste management operator.
Once the loading process is completed, the collection truck transports the waste to the designated transfer station, treatment facility, or disposal site.
This workflow integrates underground collection, horizontal compaction, and waste transportation into a coordinated handling process.
Choosing an underground horizontal garbage compactor can offer several practical benefits for projects with specific space and waste handling requirements.

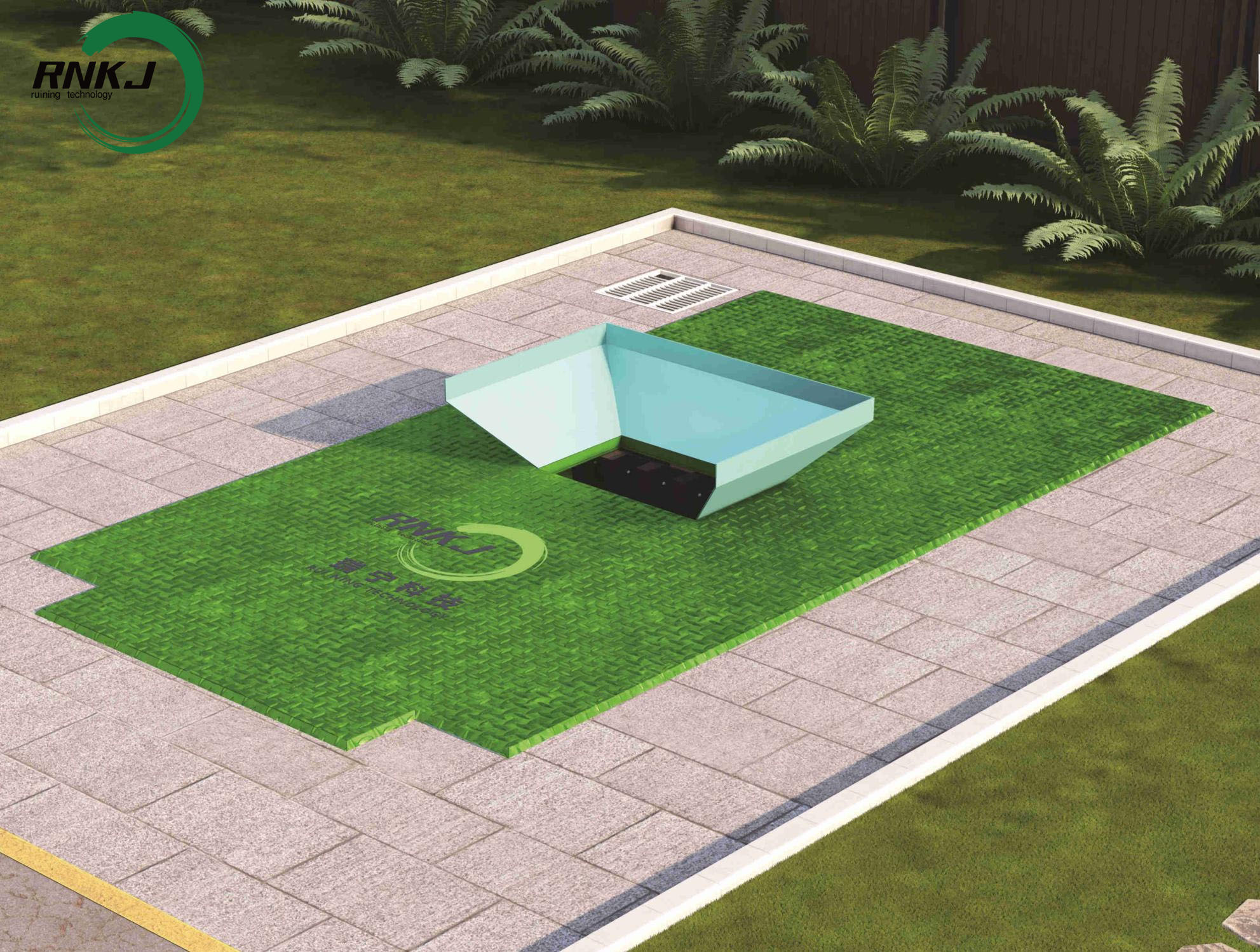

One of the main advantages of an underground garbage compactor is its space-saving installation design. Locating the main equipment underground can reduce the surface area occupied by waste handling facilities.
This is particularly useful for residential communities, commercial developments, public squares, and urban projects where available space is limited.
The horizontal compression mechanism applies hydraulic force along a defined direction. It is suitable for system designs that require waste to be compressed and pushed toward a designated discharge position.
By reducing the volume of suitable waste, the equipment can support more organized waste collection and transportation operations.
An underground horizontal garbage compactor can be designed around the project's waste transportation process. In direct-loading configurations, the horizontal pushing mechanism moves compacted waste toward a waiting truck.
This arrangement can simplify the transfer process when the compactor, discharge area, and collection vehicle are properly matched.
Because much of the equipment is installed below ground level, the system can help reduce the visual impact of conventional waste collection facilities.
When combined with an appropriate feeding arrangement, site layout, and cleaning plan, it can support a more orderly waste collection environment.
Different projects have different requirements for waste volume, installation depth, available space, collection frequency, and truck compatibility.
An underground horizontal garbage compactor can be configured according to project-specific conditions. Customization may cover chamber dimensions, hydraulic system specifications, control functions, feeding arrangements, and discharge configuration, subject to the manufacturer's design capabilities.
An underground horizontal garbage compactor can be considered for a range of municipal, commercial, and institutional waste handling projects.
Large residential communities generate household waste every day. An underground waste compaction system can help organize collection points and reduce the surface space used by waste handling equipment.
The design should account for the number of residents, daily waste volume, collection frequency, available installation space, and the movement of collection vehicles.
Shopping centers, supermarkets, and mixed-use commercial developments may generate packaging waste, general refuse, and other solid waste streams.
An underground horizontal garbage compactor can provide a centralized waste handling arrangement when the waste types and collection workflow are compatible with the equipment.
Municipal waste collection projects often need to balance waste handling capacity with limited urban space. Underground horizontal compaction equipment can be considered for designated collection points, public facilities, and other sites where underground installation is feasible.
Project planning should include construction requirements, maintenance access, and coordination with local waste transportation services.
Hotels, office buildings, and large institutional facilities may need a dedicated waste collection area that does not interfere with daily activities.
An underground compactor can help centralize waste handling, provided the installation arrangement meets the building's operational, structural, and environmental requirements.
Some industrial parks and logistics facilities produce substantial quantities of suitable solid waste. An underground horizontal garbage compactor may be considered where the site requires centralized collection and a horizontal compression process.
Waste composition must be evaluated carefully. Materials with unusual dimensions, excessive liquid content, or special handling requirements may need a different compaction solution.
Understanding the differences between equipment types can help buyers select the appropriate system for their projects.
| Comparison Factor | Underground Horizontal Garbage Compactor | Conventional Above-Ground Garbage Compactor |
|---|---|---|
| Installation | Main equipment installed below ground level | Equipment generally installed above ground |
| Surface space | Can reduce the visible equipment footprint | Requires space for the equipment body and working area |
| Compression direction | Horizontal hydraulic pushing | Depends on the equipment design |
| Waste transfer | Can be configured for direct loading toward a waiting truck | May use direct loading, a container, or another transfer arrangement |
| Civil construction | Usually requires underground construction and foundation work | Generally requires a suitable above-ground foundation |
| Maintenance access | Must account for underground access and lifting arrangements where applicable | Often provides more direct access to exposed components |
| Suitable projects | Space-constrained urban and municipal waste collection sites | Sites with sufficient surface space and suitable vehicle access |
The best option depends on the installation environment, waste characteristics, transportation method, construction budget, and long-term maintenance plan. Underground installation is not automatically the best choice for every project.
Before requesting a quotation, buyers should confirm several important technical and operational details.
Estimate the amount of waste generated per day and consider peak collection periods. This information helps determine the required chamber dimensions, storage capacity, compaction cycle, and collection frequency.
Identify whether the system will handle household waste, commercial refuse, packaging waste, or other solid waste. Waste density, moisture content, material size, and composition can affect compaction performance.
If the waste contains significant free liquid or special materials, discuss the handling requirements with the manufacturer before selecting the equipment.
Measure the installation area and assess the available depth, foundation conditions, drainage, groundwater conditions, and access for maintenance.
Underground installation requires coordination between equipment dimensions and civil construction. Confirming these requirements early can help reduce design changes during installation.
The discharge arrangement must match the collection vehicle and waste transportation workflow. Confirm the truck's dimensions, loading position, operating space, and the method used to receive compacted waste.
If direct truck loading is required, ask the manufacturer to clarify the horizontal pushing and discharge process for the proposed configuration.
Review the hydraulic power requirements, operating cycle, control method, safety devices, and maintenance requirements.
Buyers should also ask about the availability of replacement parts, technical support, and recommended inspection intervals.
Ask whether the supplier provides installation drawings, foundation requirements, electrical specifications, commissioning guidance, and operating instructions.
For underground systems, maintenance access is especially important. The design should allow qualified personnel to inspect hydraulic components and other serviceable parts safely.
A customized underground horizontal garbage compactor allows the equipment configuration to be matched to the actual conditions of a waste collection project.
For example, a residential community may prioritize a compact installation footprint and convenient daily waste collection. A commercial facility may require a higher handling capacity and a collection arrangement compatible with its existing vehicles. A municipal project may need a particular underground layout and control configuration.
When developing a customized solution, the manufacturer should evaluate:
Required waste handling capacity and collection frequency.
Horizontal compression chamber dimensions.
Hydraulic system configuration and pushing mechanism.
Underground installation space and foundation conditions.
Waste feeding and discharge arrangements.
Collection truck compatibility.
Electrical control, safety features, and maintenance access.
Providing these details when requesting a quotation helps the supplier evaluate the project and recommend a more suitable equipment configuration.
Its main function is to collect and compress suitable solid waste using a horizontal hydraulic pushing mechanism. Depending on the configuration, the system can also push compacted waste toward a waiting collection truck.
A hydraulic cylinder drives the pushing mechanism horizontally through the compression chamber. The applied force compresses the waste and moves it along the designed direction.
Yes, customization may be available for chamber dimensions, hydraulic specifications, installation layout, control functions, and waste discharge arrangements. The available options depend on the manufacturer's engineering capabilities and the project requirements.
Yes. Underground installation generally requires suitable excavation, foundation construction, and coordination of drainage, electrical connections, access, and maintenance provisions. The specific requirements depend on the site and equipment design.
Start by evaluating daily waste volume, waste type, installation dimensions, collection frequency, and truck compatibility. Then discuss the required configuration and technical specifications with the manufacturer.
