Purpose and characteristics of garbage compression station

Waste transfer stations are facilities where municipal solid waste is unloaded from collection vehicles and briefly held while it is reloaded onto larger long-distance transport vehicles for shipment to landfills or other treatment or disposal facilities. By combining the loads of several individual waste collection trucks into a single shipment, communities can save money on the labor and operating costs of transporting the waste to a distant disposal site. They can also reduce the total number of vehicular trips traveling to and from the disposal site. Although waste transfer stations help reduce the impacts of trucks traveling to and from the disposal site, they can cause an increase in traffic in the immediate area where they are located. If not properly sited, designed and operated they can cause problems for residents living near them.

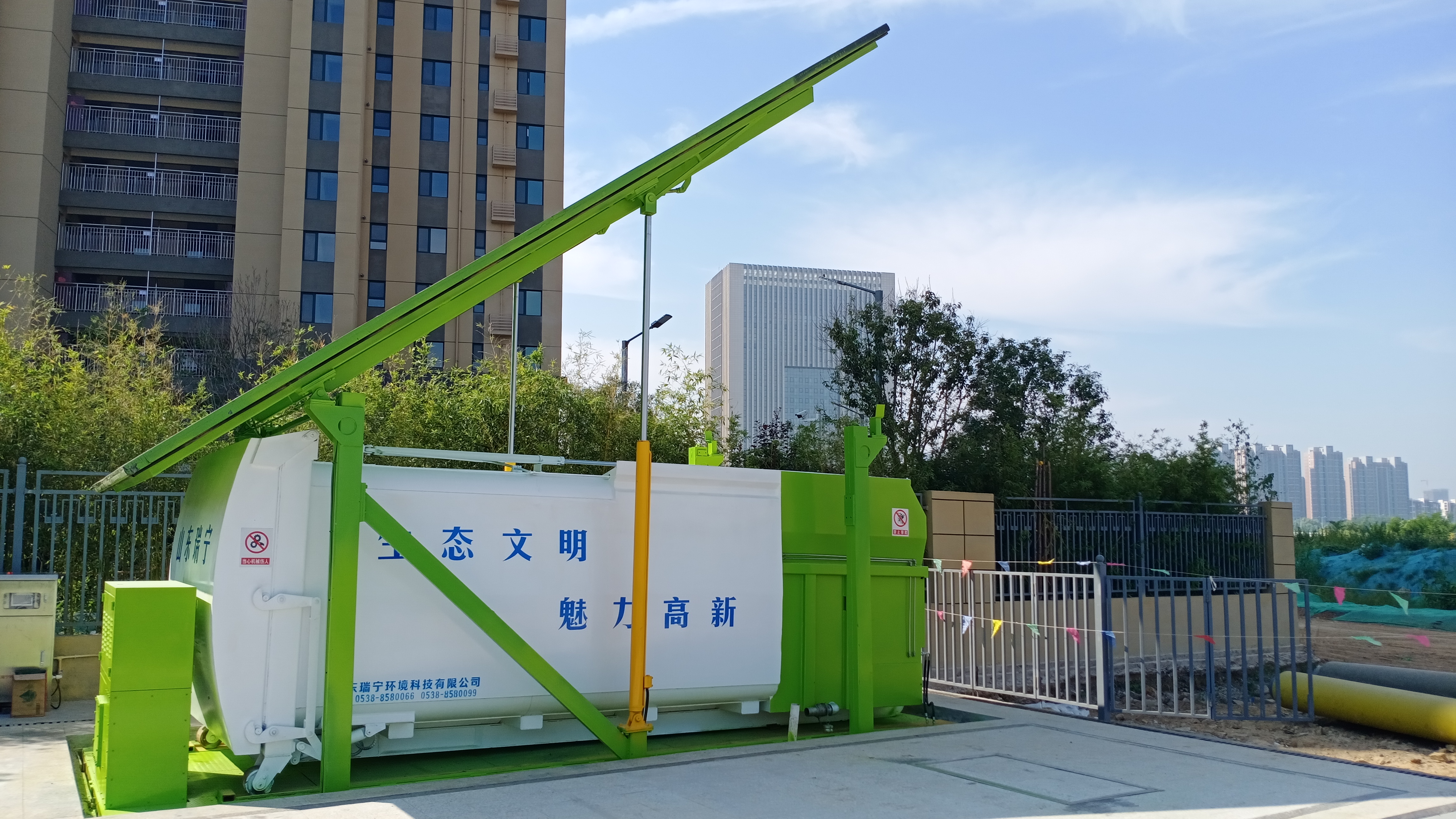

Garbage Compactor which adopts the underground garbage compression technology are developed according to the current situation of solid-waste treatment. It mainly consists of garbage storage tank, lifting translational device, compressing mechanism, medicine spraying and stink smell removal system, electro-hydraulic controlling system and etc. It has advantages such as modular design, small area demanded, excellent compactability, low require for foundation, environmental protection. This equipment is widely used in the city streets, communities, schools, hospitals, bus stations, industrial zone, commercial markets, gardens and other public service areas.

Characteristics:

1. Aesthetic Appearance: Underground structure, module design and no building require.

2. Wide Scope of Application: Because of no building require that is very easy for outdoor position choosing such as on the road side, the corners of the street, the ends of the pavement and the spaces between buildings.

3. Low Transportation Cost: High compression stress and 3: 1 compression ratio which can be significantly reduce the transportation cost.

4. Excellent Compactability: Being adopt with PLC programming controller and combined with the dewatering and air exhausting technology on the both side and bottom of storage tank. It can be remarkably reduce the moisture content and increase garbage density.

5. Six Patents: Adopt the patented technology of "fore-and-aft move while lifting" to ensure good connection between garbage station and transportation vehicle and avoid the garbage dropped into foundation pit.

6. Friendly Environmental Applicability: The facility compresses the garbage underground and adopts with atomizing deodorant spray technology of deodorization and dedusting, sewage drainage technology to guarantee the friendly environmental applicability.

7. Reliability: The facility combined with stable PLC auto-controller and electro-hydraulic controlling system and high-performance hardwares to ensure its reliability and easy-to-operate concept.

8. Long life-time: All structural parts are treated with shot-blasting, rust removing, painting with high anticorrosive heavy protection paint, with international brands. The whole facility has good performance for anti-corrosibility and long service life.
