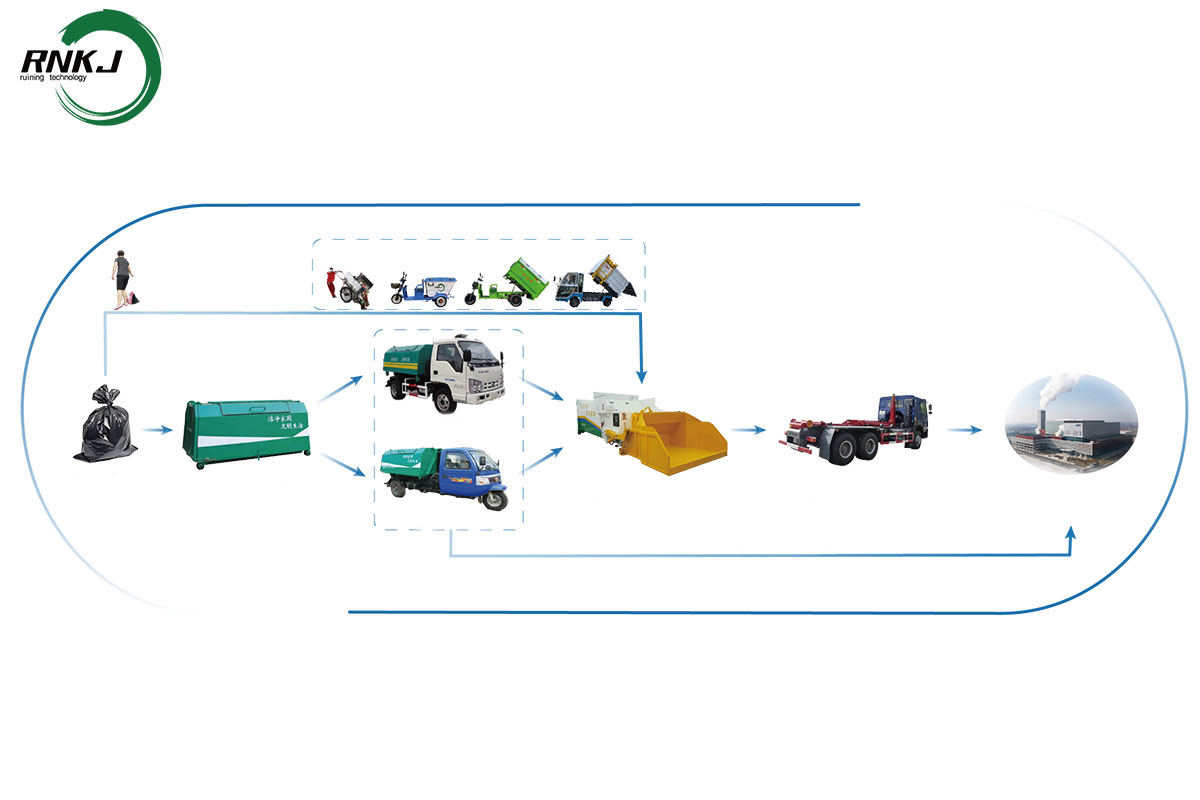

Collection, transportation and disposal of domestic waste
Household waste can be collected in the following two ways:
Directly placed in the garbage bins at the garbage compression station
Put it in the temporary storage bins

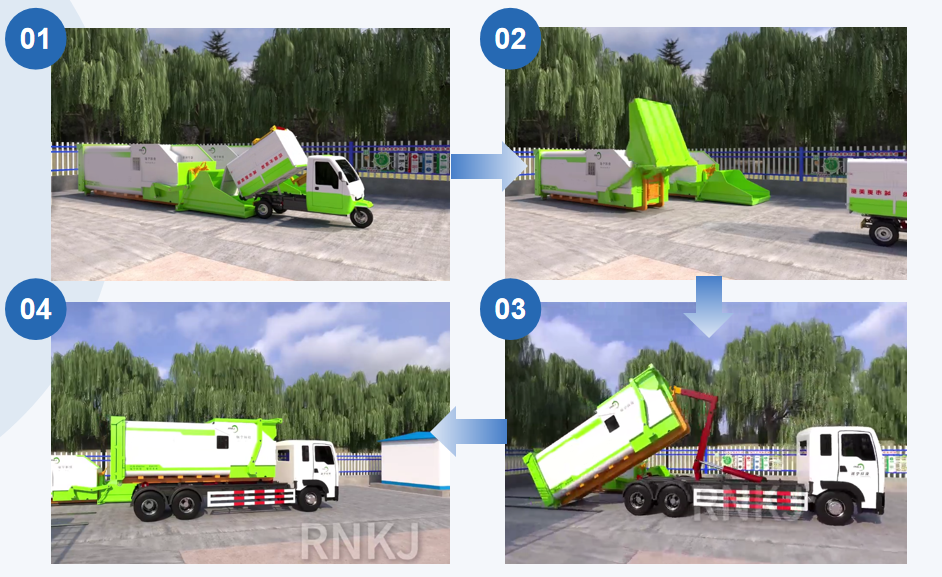

The garbage in the 3 garbage storage containers is transported from the vehicle to the garbage compression station by a four-wheel sanitation boom vehicle or a sanitation boom vehicle. This compression station is compatible with various types of collection vehicles for dumping garbage and has strong adaptability.
After the garbage has undergone compression treatment at the compression station, it is uniformly transported to the waste treatment plant by the boom truck.
All the garbage transferred to the waste treatment plant will undergo final harmless and resourceful terminal processing here.

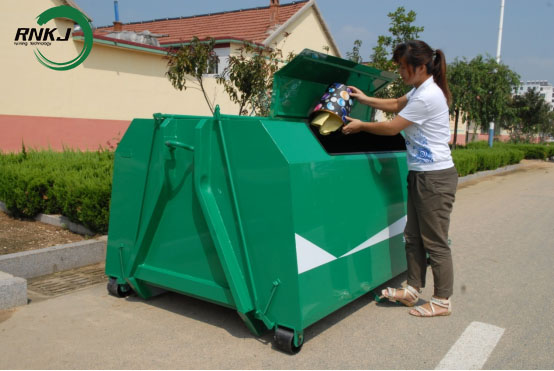

The garbage bin is made of steel structure, which is rust-proof and corrosion-resistant, safe and fireproof, and has a long service life.
On both sides of the box, there are side-opening small doors that can be operated manually or by foot, making it convenient for garbage disposal.
The height of the hinge can be designed according to the requirements of the user-provided detachable garbage truck to achieve compatibility.
Silicone seals are installed between the box and the rear door, making it a fully enclosed type and undergoing a water-tight test to prevent water leakage and ensure that the garbage and sewage inside do not leak out when the box is lifted, thus preventing secondary pollution.
One truck can be equipped with multiple garbage bins, which is convenient to operate and has high operational efficiency.
The interior of the box is supported by a welded frame made of 30×30×3mm square tubes to enhance the structural strength of the box.
The bottom frame and lifting frame are made of 5mm cold-rolled steel plates and welded together with the box.
The upper cover of the feeding port is equipped with plastic steel wire clips on the outer edge to cushion the collision between the upper cover of the feeding port and the box, reducing the noise during operation.
The box undergoes acid washing and phosphating treatment, and is then sprayed with anti-rust paint and alkyd enamel on the outside; the inside of the box is sprayed with anti-corrosion paint.
The upper cover adopts a foot-operated linkage structure for opening, and a pressure reducing device is installed.
The rear door is equipped with sealing rubber strips to prevent water leakage.
Large-capacity hopper: The hopper has a large volume, capable of holding a considerable amount of garbage at one time. It can be compatible with large-capacity garbage collection vehicles, reducing the frequency of garbage dumping and improving the efficiency of garbage collection.
Efficient compression and large capacity: With a large capacity, more garbage can be stored, thereby reducing the number of garbage transfers and costs.
Operation is convenient: Operators only need to pour the garbage into the hopper. It is equipped with various operation methods such as touch screen and remote control. It can be operated remotely from a certain distance, which enhances the convenience and safety of the operation.
Wide application range: It can be used for collecting, compressing and transporting various types of household waste, and can meet the waste treatment needs of different regions and locations. The equipment has a relatively small footprint and is suitable for various terrain and site conditions.
The operation in the cab has greatly reduced the labor intensity and improved the working environment for the workers.
The vehicle is compact in design; it is flexible in operation and highly maneuverable.
One vehicle can be equipped with multiple boxes, significantly reducing the investment cost.
The components are selected from well-known domestic brands to ensure the stability of the product's functions.

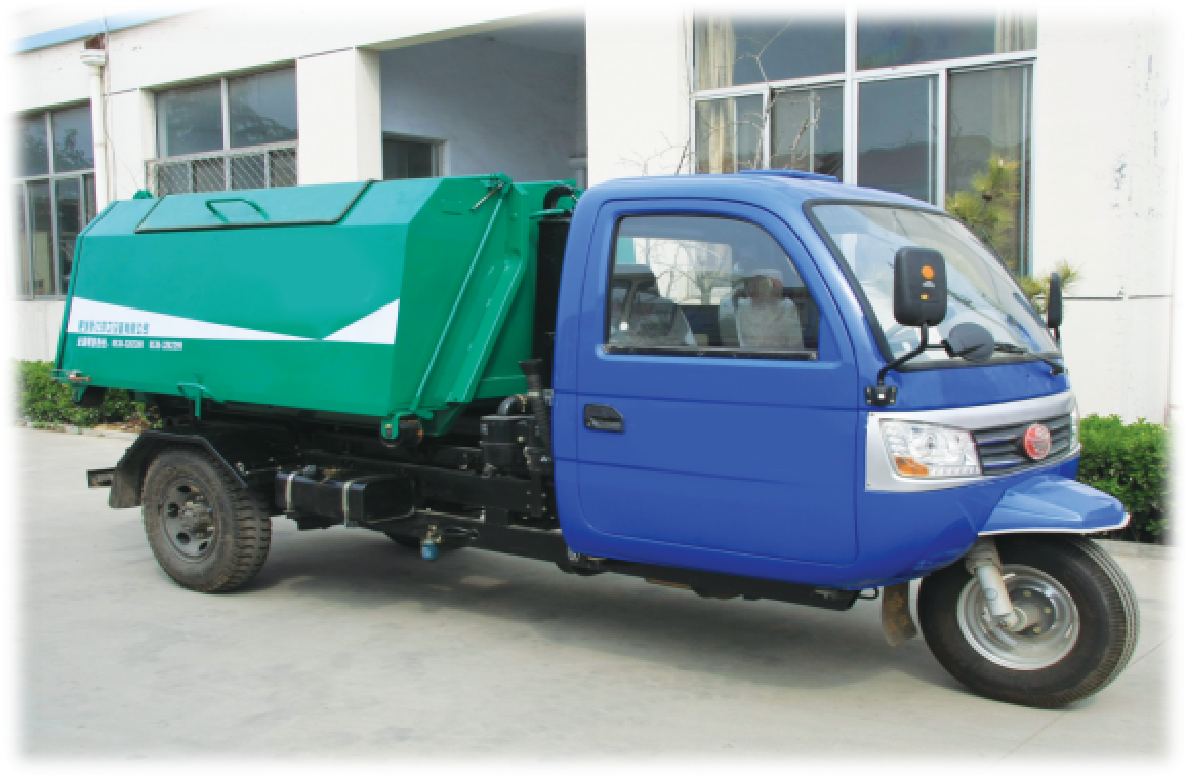

The cost of purchasing a three-wheeler is low, and the box configuration can be adjusted according to the population of each village and the amount of garbage.
The requirements for the driver of a three-wheeler are not high, and the vehicle maintenance and operation costs are also low.

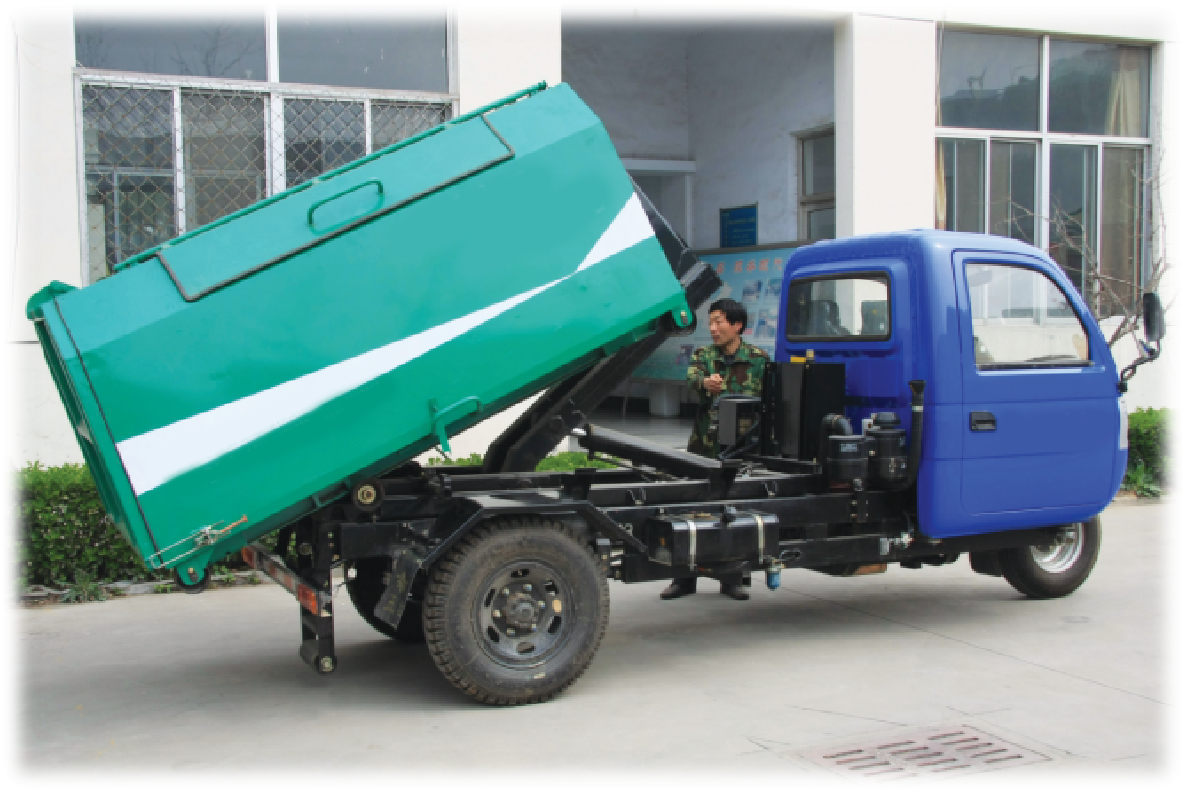

One three-wheeled arm vehicle can be equipped with 6 to 10 boxes.
The mobile boxes are easy to locate and do not usually require planning approval.
When the garbage is full, it can be directly transported to the town-level garbage compression and transportation center by the three-wheeler.

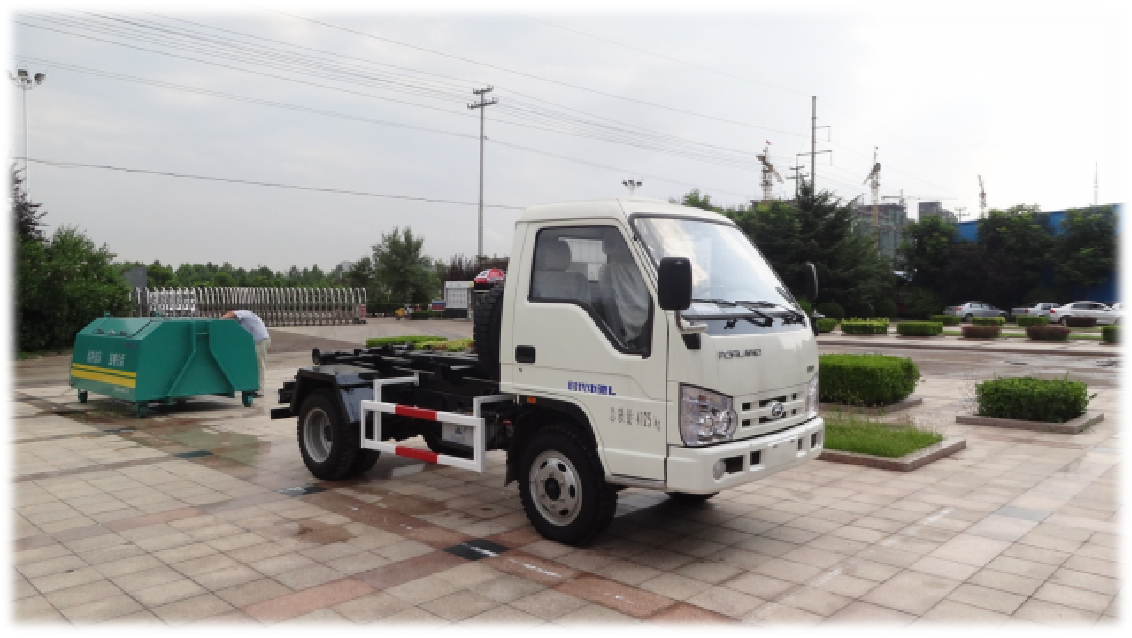

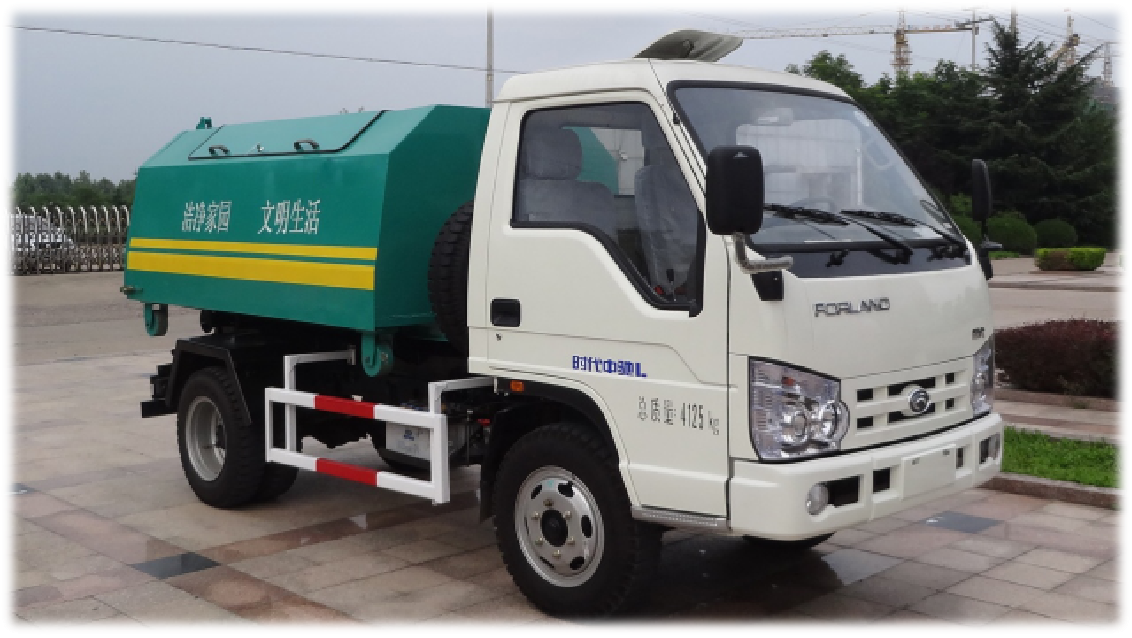

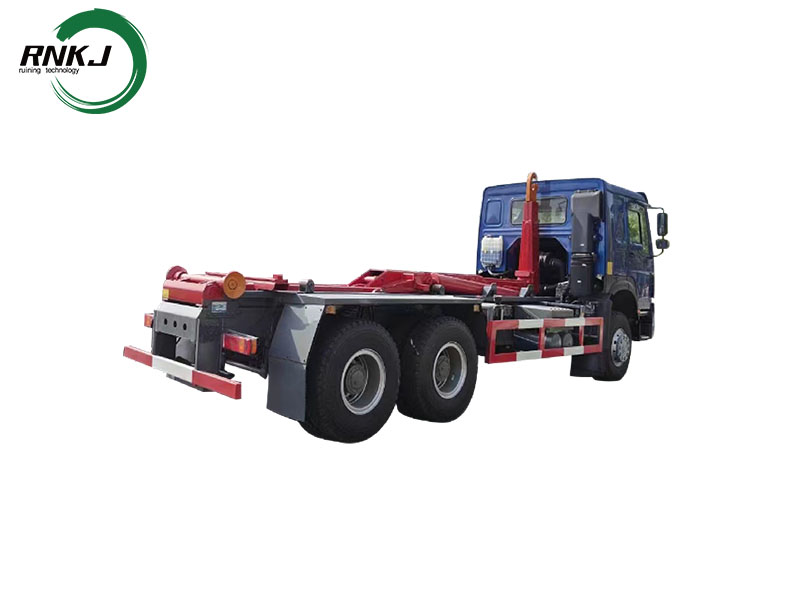

The hook-arm type garbage truck is a special type of garbage transportation vehicle that uses a retractable hook arm for the secondary lifting of the garbage container. It can lift and lower the garbage container by itself and can automatically dump the garbage. This vehicle is suitable for urban streets and school garbage disposal, and is used for collecting, transporting and discharging bagged and bulk domestic and construction waste in towns. It can be equipped with multiple garbage containers in one vehicle.
