Device features
Structural composition: It includes the lifting system, compression box, four-category collection bucket platform, etc.
Appearance design: The design is attractive and has good concealment. No need for building construction, thus saving infrastructure investment.
Functional advantages
Customized service: The upper cover can be provided with various materials such as marble, lawn, and colored plastic according to customer requirements.
Volume selection: There are various options for the volume of the compression box, meeting the needs of different customers.
Supporting facilities
Vehicle support: The supporting vehicles are the existing detachable garbage trucks of the sanitation department. No additional purchase is required.
Underground compression unit: The main body is buried 3.5 meters underground, equipped with 6-22 cubic intelligent garbage compression collection containers, with a compression ratio of 3:1, achieving waste reduction processing.

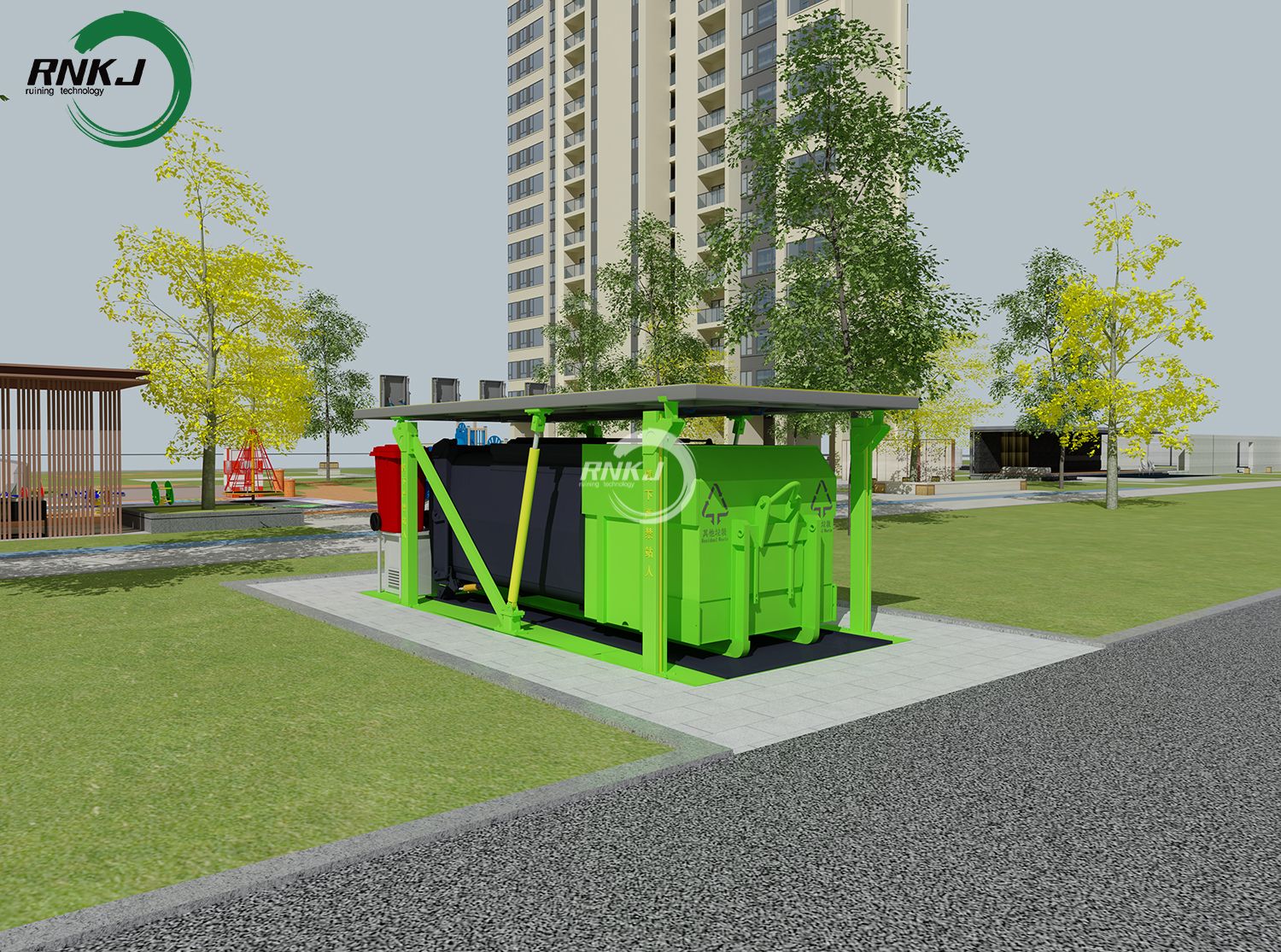

Four hydraulic cylinder lifting system: Four sets of hydraulic cylinders are integrated with the pallet for stable driving of the compression host and pallet equipment lifting, meeting the needs of garbage transfer and equipment maintenance. The operation is smooth without any jamming.
Four hydraulic cylinder lifting system: Four sets of hydraulic cylinders are integrated with the pallet for stable driving of the compression host and pallet equipment lifting, meeting the needs of garbage transfer and equipment maintenance. The operation is smooth without any jamming.

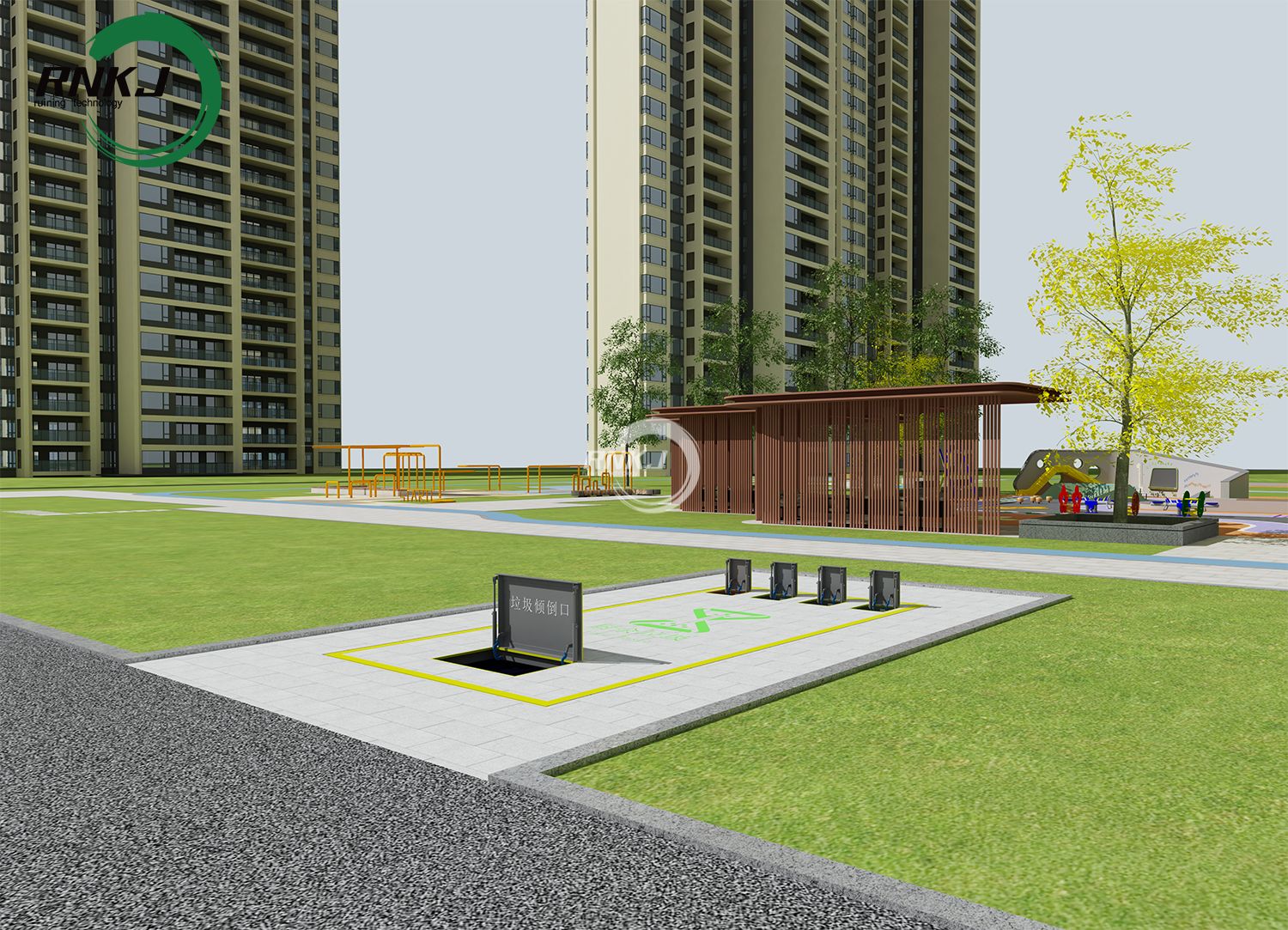

Landscape-style ground cover plate: The ground cover plate can be customized with material and appearance, integrating with the surrounding environment, and has excellent concealment.
Intelligent control system: Integrates monitoring, warning, start-stop and other functions, supports one-click operation, reducing the cost of manual management.
Seamless integration of landscape: Supports customization of materials such as grass and marble, integrating with the environmental landscape without compromising the aesthetic appeal.
Full-scale customization: Volume range covers 8-22 cubic meters, offering multiple feeding methods to meet different scene requirements.
Sealed and environmentally friendly design: Underground design, delaying garbage decomposition in low-temperature environments, with low operating noise, suitable for high environmental requirement scenarios.
Efficient and cost-effective operation and maintenance: High garbage compression ratio, reducing the frequency of collection, and lowering transportation costs; modular structure, facilitating maintenance.
Equipment specifications
Volume selection: Offers a range of volume options from 6 cubic meters to 22 cubic meters, meeting various needs.
Installation depth: The installation depth of the equipment is 3.5 meters, ensuring flexibility in use.
Floor area: The equipment occupies a floor space of 3.5 meters in width and 7.5 meters in length, saving space.
Functional features
Lifting system: Utilizes a four-cylinder hydraulic lifting system, which is stable and efficient.
Loading method: Hydraulic flip cover loading, operation is simple and safe Compression ratio: The compression ratio reaches 3:1, enhancing the compression efficiency.
Operation and Security
Operating noise: The operating noise is controlled at ≤ 55 decibels, reducing noise pollution.
Ground cover plate: The materials of the ground cover plate are diverse, including marble patterns, asphalt patterns, etc., which can be selected.
Support and Control
Transfer vehicle: Equipped with a telescopic boom vehicle, enabling efficient transfer.
Control system: Intelligent one-click operation and fault warning system, enhancing operational convenience and safety.
High-density residential area: Highly concealed, avoiding unpleasant odors and noise disturbances.
Scenic area/park: The landscape cover plates blend into the natural environment, without damaging the appearance of the scenic area.
Municipal roads/commercial streets: Small in area, suitable for urban core area waste disposal.
Industrial park: High compression ratio to meet the needs of centralized processing of industrial waste.
