What Are The Differences between Horizontal And Vertical Waste Compression Stations?

Waste compression stations are indispensable facilities in modern urban waste management systems. Their main function is to reduce waste volume through compression, improving transportation efficiency and lowering processing costs. Horizontal and vertical are two mainstream design types of waste compression stations, differing significantly in structure, working principle, and applicable scenarios.

Differences in Concept and Working Principle

Horizontal waste compression stations use a transverse compression method, with the core characteristic being that the compression direction is parallel to the ground. This system typically consists of a horizontally placed compression chamber, a pushing device, and a container. When waste is put into the compression chamber, the horizontal hydraulic pusher pushes the waste towards the container, gradually filling the container through multiple compression cycles. This design ensures that the operating surface and the compression direction are on the same horizontal plane, facilitating docking and operation of garbage trucks.

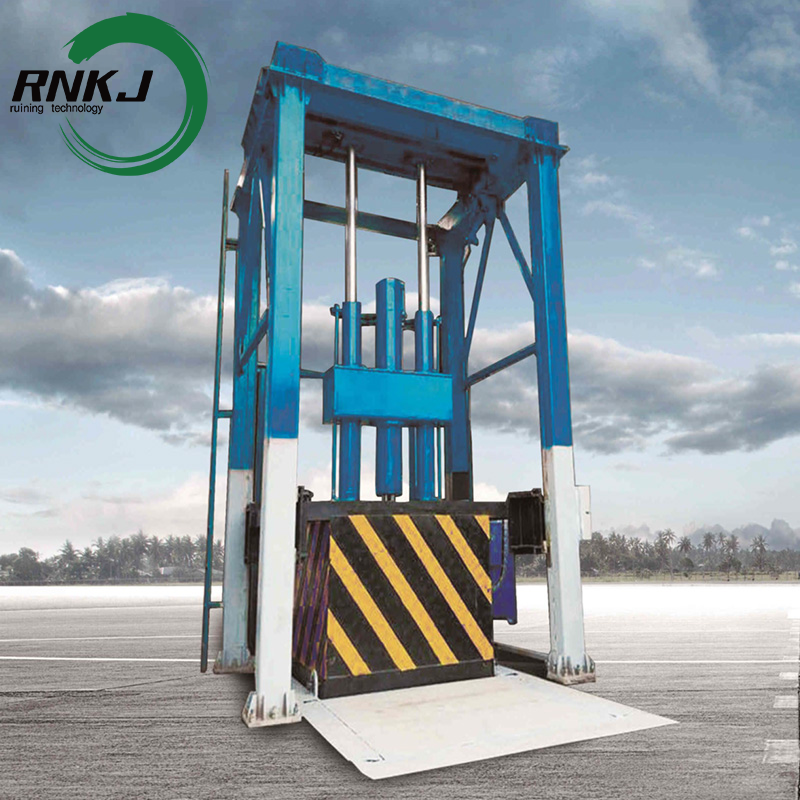

Vertical waste compression stations, on the other hand, use a longitudinal compression method, with the compression direction perpendicular to the ground. Their typical structure includes a vertical compression chamber, an upper pressing device, and a bottom container. After waste is put in from the top, the upper pressure head applies vertical downward pressure, compressing the waste into the container below. This "top-down" working mode gives the system a high space utilization rate, making it particularly suitable for urban areas with limited land resources.

Comparison of Structure and Space Requirements

Horizontal Compression Station Structural Characteristics:

Larger footprint: Requires sufficient length to accommodate the movement trajectory of the compression chamber and pushing device.

Relatively low height: Typically a single-story or low-rise design, facilitating level docking with garbage trucks.

Flexible layout: Can adopt linear or corner designs to adapt to different site conditions.

High equipment visibility: Intuitive operation process, easy monitoring and maintenance.

Vertical Compression Station Structural Characteristics:

Smaller footprint: The compression process is completed vertically, saving horizontal space.

Higher height requirement: Requires sufficient vertical space to accommodate the compression stroke and collection... Containerization

3D Design: Often employs a multi-layered structure, with the feeding port and compression zone separated.

High Space Utilization: Suitable for installation inside buildings or underground spaces.

Operation Flow and Efficiency Comparison

Horizontal System Operation Flow:

The garbage truck dumps garbage into the compression chamber's inlet.

The pressing device moves horizontally, pushing the garbage into the container.

Multiple compression cycles continue until the container is full.

The container is sealed and transported to the processing site.

The empty container is replaced to continue operation.

Vertical System Operation Flow:

Garbage enters the compression chamber from the top inlet.

The upper pressing device presses vertically downwards, compressing the garbage into the bottom container.

Multiple compression cycles continue until the container is full.

The full container is removed and replaced with an empty one.

The system resets to prepare for the next compression cycle.

Efficiency Comparison:

Compression Ratio: Vertical compression plants typically achieve higher compression ratios (approximately 3:1 to 5:1), while horizontal compression plants generally achieve 2:1 to 3:1.

Processing Speed: Horizontal compression plants have larger single-batch processing capacities, suitable for centralized processing; vertical compression plants are suitable for continuous feeding.

Labor Requirements: Horizontal compression plants offer a wider operating area, facilitating multi-person collaboration; vertical compression plants typically have a higher degree of automation.

Applicable Scenarios and Advantages/Disadvantages Analysis

Applicable Scenarios for Horizontal Compressor Stations

Large Transfer Stations: Regional waste treatment centers with a daily processing capacity of 50 tons or more.

Suburbs or Industrial Zones: Locations with relatively abundant land resources.

Mixed Waste Treatment: Suitable for large-volume, complex-composition waste.

Connection with Rail/Waterway Transfer: Facilitates the transportation of large containers.

Main Advantages:

Large processing capacity, suitable for high-load operation.

Easy equipment maintenance, low repair costs.

Convenient container replacement, high transportation efficiency.

Strong system stability, relatively low failure rate.

Main Disadvantages:

Large footprint, unsuitable for space-constrained areas.

High initial investment, strict infrastructure requirements.

Relatively high energy consumption, high operating costs.

Vertical Compressor Stations Applicable Scenarios for the Station

Urban Center: High-density built-up areas with scarce land

Underground Facilities: Underground spaces such as subway stations and commercial complexes

Sorted Waste Treatment: Suitable for relatively simple waste flows

Decentralized Layout: Can be set up at multiple points to form a collection network

Main Advantages:

High space efficiency, suitable for small spaces

Good environmental enclosure, excellent odor and noise control

High degree of automation, minimal human intervention

Aesthetically pleasing, easily integrated into the urban landscape

Main Disadvantages:

Limited single-processing capacity, unsuitable for large-scale centralized processing

High equipment complexity, high maintenance technical requirements

Relatively complex container replacement operation

Vertical accuracy may decrease after long-term use

Environmental Impact and Maintenance Considerations

Environmental Impact Comparison

Noise Level: Vertical systems are generally quieter due to their better sealing; horizontal systems may generate significant mechanical noise during the pressing process.

Odor Control: Vertical systems offer superior sealing, which helps control the spread of garbage odors; horizontal systems require an additional deodorization system.

Wastewater Management: Both require leachate collection, but vertical systems are easier to direct for liquid discharge.

Visual Impact: Vertical systems have a more compact appearance and are easier to beautify through architectural design; horizontal systems have a stronger visual impact.

Differences in Maintenance Needs

Mechanical Maintenance: Horizontal systems require more frequent maintenance of their hydraulic pusher systems; vertical systems require regular calibration of their guide systems.

Lubrication Needs: Horizontal systems have more moving parts and a wider distribution of lubrication points; vertical systems have lubrication points concentrated in the vertical moving mechanism.

Wear Areas: Horizontal systems are prone to wear on the pusher seal; vertical systems commonly experience wear on the pressure head guide device.

Electrical Systems: Vertical control systems are typically more complex, requiring higher electrical maintenance standards.

Key Factors in Selection Decisions

When choosing a type of compression station in a project, the following factors should be considered comprehensively:

Site Conditions: Available area, height restrictions, load-bearing requirements

Processing Needs: Daily waste volume, peak load, waste composition characteristics

Environmental Constraints: Noise standards, odor control requirements, landscape harmony

Economic Factors: Initial investment budget, long-term operating costs, maintenance costs

Development Expectations: Future expansion needs, technology upgrade paths

Generally, newly built large transfer stations often use horizontal systems, while urban renewal projects or space-constrained areas tend to choose vertical systems. The decision-making process should involve a comprehensive feasibility study and techno-economic comparison to select the solution best suited to local conditions.

Horizontal and vertical waste compression stations each have their own technical characteristics and applicable scenarios; there is no absolute superiority or inferiority. With technological advancements and changing urban development needs, both systems are continuously being optimized and upgraded. Future waste compression facilities will be more intelligent, environmentally friendly, and efficient, potentially blurring the lines between the two types and leading to more innovative hybrid solutions. Urban planners and waste management experts need to select the system design that best meets the long-term development needs of the local area, contributing to the construction of a sustainable urban environment.
