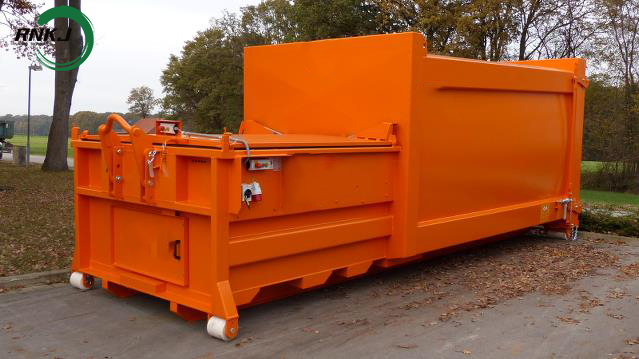

The mobile garbage compactor, which is widely used in rural communities, temporary construction sites, scenic areas and other places, serves as the core equipment integrating garbage collection, compression reduction and sealed storage. With its advantage of flexible deployment, it has become the preferred solution for decentralized garbage disposal. However, long-term high-intensity operation or improper operation and maintenance can easily lead to various faults, mainly concentrated in the four core modules: hydraulic system, electrical system, compression mechanism and mechanical structure.
The hydraulic system of the mobile garbage compactor is the core of power output, responsible for functions such as transmitting compression force and driving the mechanism. Common problems account for over 40% of the total equipment failures:
Leakage failure: It manifests as oil leakage from the cylinder and dripping at the pipe joints. The main causes are aging of the seals, damage to the combined gaskets, or loosening of the pipe joints. Especially for the compression oil cylinder, which is a high-pressure working component, the seals are prone to wear and leakage after being damaged, directly affecting the compaction effect. During daily inspections, if it is found that the hydraulic oil consumption is too fast, the sealing rings and pipe connection points need to be checked promptly.
Insufficient pressure and slow operation: For mobile garbage compaction machines, problems such as weak push head force and prolonged compression cycle time often occur. These are usually caused by low hydraulic oil level, stuck multi-way valves, or worn-out oil pumps.
Overheating and abnormal oil condition: If the hydraulic oil temperature exceeds 60℃, the protection mechanism will trigger and the machine will stop. The causes include low oil level, excessive leakage from the hydraulic pump, or wear of the control valve. If the hydraulic oil changes color and bubbles up, it is likely that the oil tank is not properly sealed and water has entered or there is air leakage in the pipeline, causing the oil to emulsify. In this case, the hydraulic oil should be replaced immediately and the sealing system should be inspected.
Abnormal vibration and noise: During operation, the hydraulic system emits a harsh noise, usually due to air intake in the pipelines or loose fixation of components. It is necessary to release the air in each section and tighten the hydraulic pipelines and component positioning devices. This situation is particularly common when the mobile garbage compactor is restarted after transportation and is a minor fault that is easily overlooked.
The electrical control system of the mobile garbage compactor is responsible for instruction transmission and condition monitoring. After a fault occurs, it directly leads to the equipment stopping or malfunctioning:
Power and wiring issues: The equipment fails to start or has unstable startup, mostly due to aged power cords, loose plugs, or poor contact at the wiring terminals. In some scenarios, the power supply trips immediately upon startup, possibly due to a short circuit or burned-out fuse. Use a multimeter to test the continuity of the lines and replace the damaged components.
Control element failure: Faults in core components such as PLC controllers and travel switches can cause abnormal movement of the push head and disorder in the compression cycle. Users often encounter equipment stopping due to insufficient compression, possibly due to the proximity switch being blocked by debris or loose. Cleaning can restore normal operation.
Alarm system malfunction: Frequent false triggering of oil temperature alarms, low oil alarms, or mismatch between full tank warning and actual loading volume, mostly due to sensor failures or cable damage. For example, the human-machine interface shows no pressure, so check if the pressure sensor and its wiring harness are in good condition.
Motor failure: The motor fails to start and shows no display. This could be due to the emergency stop button not being reset or the side door not being closed. If the motor reverses or makes excessive noise, it is likely due to phase reversal or overload operation. Adjust the phase converter or restart after cooling the motor.
The compression mechanism is the core operational unit of the mobile waste compactor. Once it malfunctions, it will result in a decrease in compression effect and interruption of the operation:
Insufficient compression force: The compaction density of the waste is lower than the standard value, and the materials are loose and prone to scattering. The causes include low hydraulic system pressure, oil cylinder leakage, or hard objects mixed in the waste hindering the compression. In practical applications, metals and construction waste in unclassified garbage are common causes of a sudden drop in compression force.
Push head jamming and abnormal movement: The push head cannot extend or move smoothly, mostly due to foreign objects between the compression chamber and the push head, or insufficient lubrication of the slide track. Some users have reported that the push head does not move halfway through the compression process, requiring pressing the release button to let the push head retract. After clearing the foreign objects, adding a special lubricant is sufficient.
Abnormal number of cycles: The intelligent cycle function fails, resulting in repeated compression or incomplete compression. This may be due to a fault in the load sensing technology, preventing the equipment from dynamically adjusting the number of cycles based on the loading capacity. This situation will increase energy consumption and reduce overall operational efficiency.
The mechanical components of the mobile garbage compactor are subjected to high pressure and friction for a long time, which makes them prone to wear and loosening problems:
Component wear and loosening: Bearing damage and bolt loosening are frequent faults, especially the connecting bolts of the oil cylinder flange and the fasteners of the frame. They tend to loosen after long-term vibration. The rotating shaft and bearings of the lifting mechanism wear out, which can cause the hopper to be unable to lift or produce abnormal sounds. Regular inspections and lubricant addition are required.
Sealing and leakage issues: The aging and deformation of the rear door sealing strip can lead to sewage leakage, mainly due to sharp objects in the garbage scratching or long-term compression. The sealing strips installed without adhesive application are convenient to replace, but the surface debris still needs to be cleaned regularly to extend their lifespan.
Structural deformation: After high-intensity operation, components such as the compression chamber and the hopper may experience slight deformation, causing garbage to spill or making the feeding difficult. Especially for the hopper that connects with multiple collection vehicles, long-term heavy loading can easily cause deformation of the lifting mechanism, and regular inspections and corrections are required.
Most of the faults of the mobile garbage compactor can be avoided by following standard operating procedures and conducting regular maintenance: Daily maintenance should include keeping the machine clean, checking the oil level and the status of the travel switches; Regularly apply lubricating grease to the slides and pinions, and replace the hydraulic oil and filters at scheduled intervals; Strictly follow the garbage transfer station technical specifications to significantly reduce the occurrence rate of faults and extend the equipment's service life.
