The telescopic vehicle interface is prioritarily matched with the load-bearing structure. The volume is determined based on the average daily garbage volume and collection frequency. The material is selected according to the environmental corrosion grade. The structure is strengthened and made wear-resistant according to the type of garbage. Appropriate sealing and anti-corrosion processes are configured. Safety and cost are balanced to achieve the optimal solution.
Cable car matching
Interface matching: Ensure that the size of the hook slot in the boom box, the width of the guide rail, and the height of the hook are exactly the same as those of the boom vehicle.
Load capacity matching: The rated load of the boom vehicle must be greater than the combined weight of the box body and the garbage.
Quantity configuration: It is recommended to equip each vehicle with 3 to 4 boxes to increase the utilization rate of the vehicle and avoid idleness.
Application Scenarios
Urban communities / commercial areas: Suitable for 3-8m³, using carbon steel Q235, with good sealing performance and convenient feeding ports.
Townships / rural areas: Suitable for 8-12m³, using carbon steel Q345, with anti-leakage and wear resistance.
Construction sites: Suitable for 10-20m³, using thickened carbon steel, with high strength and impact resistance.
Coastal / chemical zones: Suitable for 3-10m³, using carbon steel Q345, with corrosion resistance and salt spray protection.
Scenic spots / hospitals: Suitable for 3-6m³, using carbon steel Q345, with clean appearance and odor suppression.
Volume Calculation
Formula: Recommended volume = Daily garbage quantity × Collection frequency
Common specifications: 3m³, 5m³, 6m³, 8m³, 10m³, 12m³, 16m³, 20m³
Selection suggestions:
Small communities (with 500 households or fewer): 3-5m³, collected 1-2 times per day
Medium-sized communities (500-1500 households): 6-8m³, collected once per day
Large communities / industrial parks: 10-12m³, collected once per day
Construction waste: 16-20m³, collected according to the progress of the project
Structural design key points
Stiffener layout: Strengthening ribs should be densely arranged around the box body and at the bottom to prevent deformation.
Base plate design:
Inclination angle ≥ 5°, facilitating discharge
It is recommended to install wear-resistant sliding plates on the construction waste bin
The domestic waste bin can be equipped with anti-slip texture
Back door design:
Hydraulic locking mechanism, sealing rubber strips, ensuring no leakage prevention
Hinges use heavy-duty bearings, enhancing durability
Roller configuration:
A combination of swivel wheels and fixed wheels, with flexible steering
High-quality materials, durable and quiet
Demand assessment: Determine the type of garbage, daily volume, collection frequency, and transportation distance.
Vehicle matching: Verify the interface parameters, rated load, and lifting capacity of the boom truck.
Parameter determination: Calculate the volume, select the material, determine the structural strength, and configure the functions.

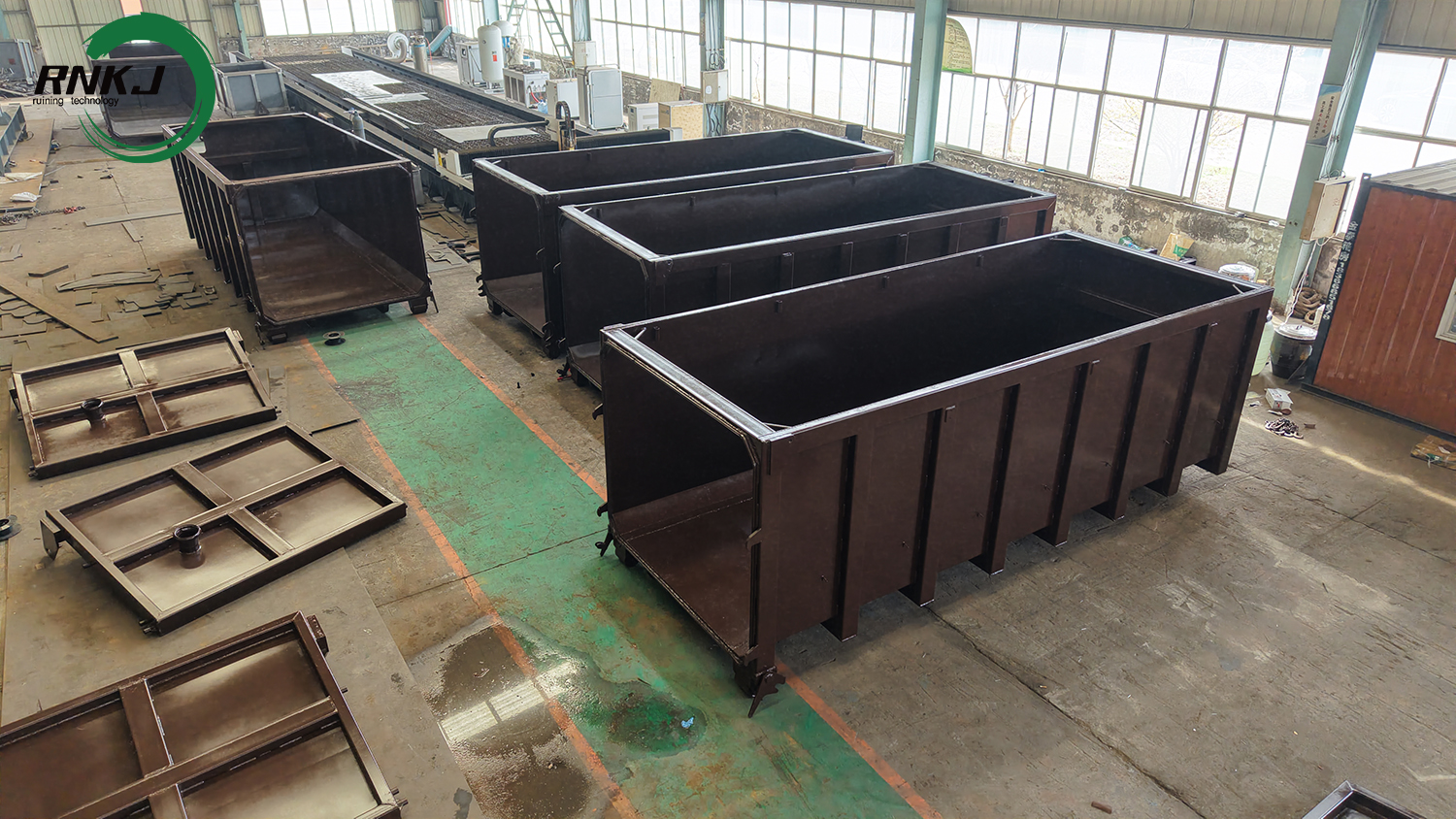

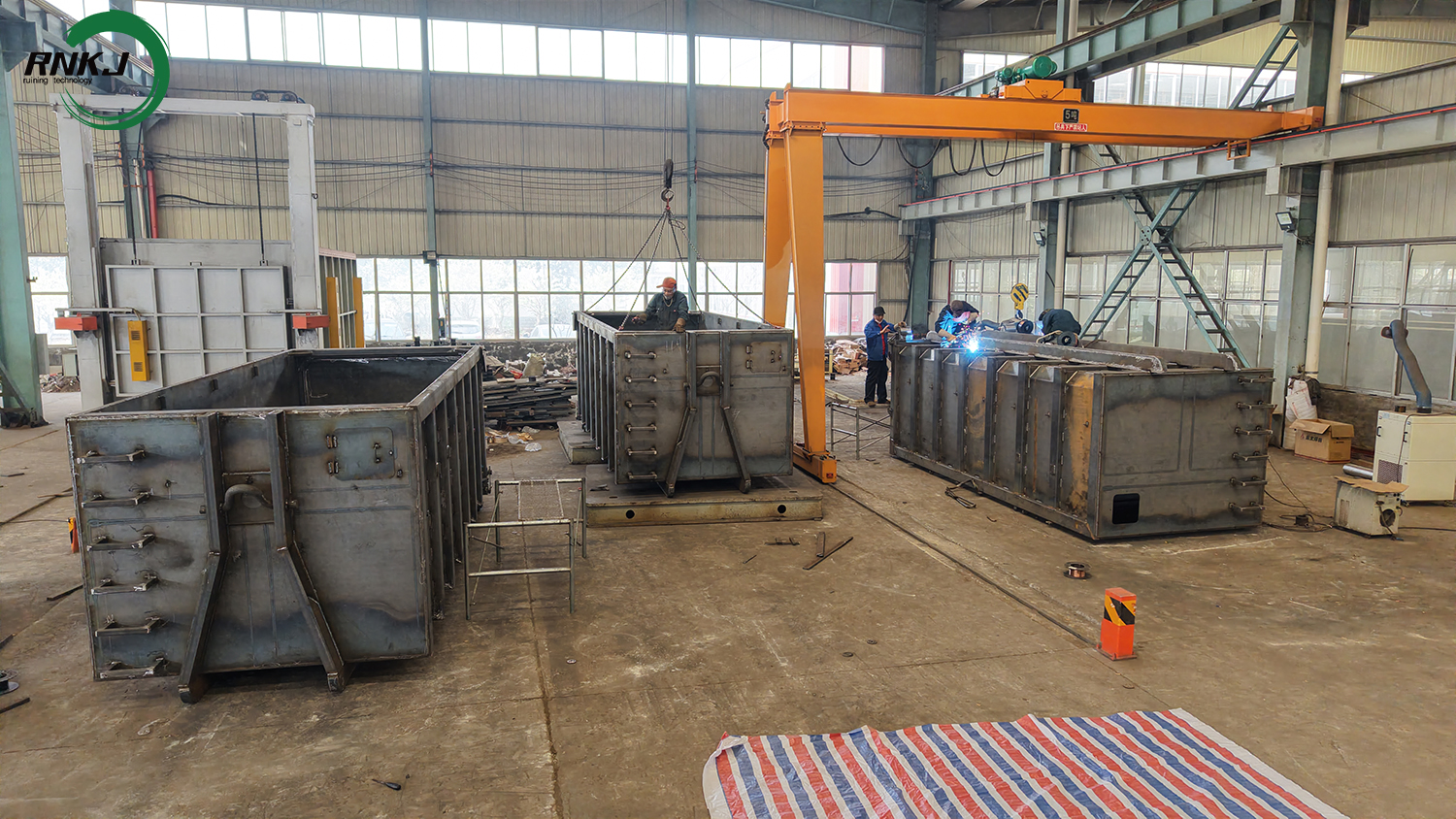

We specialize in manufacturing Hook Lift Bin. We offer a full range of 3-20 cubic sizes, with standard universal hook interfaces that are compatible with all mainstream hook-arm garbage trucks on the market. The box body is made of thick steel plates and is precisely welded as a whole. It is reinforced with encrypted strengthening ribs all over the body, ensuring strong load-bearing capacity and preventing deformation or cracking. After sandblasting for rust removal and anti-corrosion painting process, it is resistant to rust and aging, and has a longer service life. The rear door is equipped with a sealing rubber strip, which prevents leakage, odors, and ensures no spillage during transportation. It supports multi-box circulation operation in one vehicle, significantly reducing manpower and improving the efficiency of garbage collection. It is suitable for all scenarios such as municipal sanitation, residential areas, townships and streets, construction sites, and construction waste. Customized sizes, colors, feeding ports, and stainless steel high-end models are available. Factory direct supply, stable quality, and worry-free after-sales service are provided.
We suggest that before making a purchase, please contact us and provide detailed technical parameters, or obtain the product catalog from us. This will ensure that the selected Hook Lift Bin can meet the actual usage requirements, thereby improving the efficiency and economic benefits of garbage collection.
