In urban waste management, selecting the right garbage compactor is critical to balancing efficiency, cost, and environmental impact. Mobile garbage compactors and Underground garbage compactors represent two distinct technical routes—one offering flexibility and mobility, the other emphasizing space-saving and aesthetics.

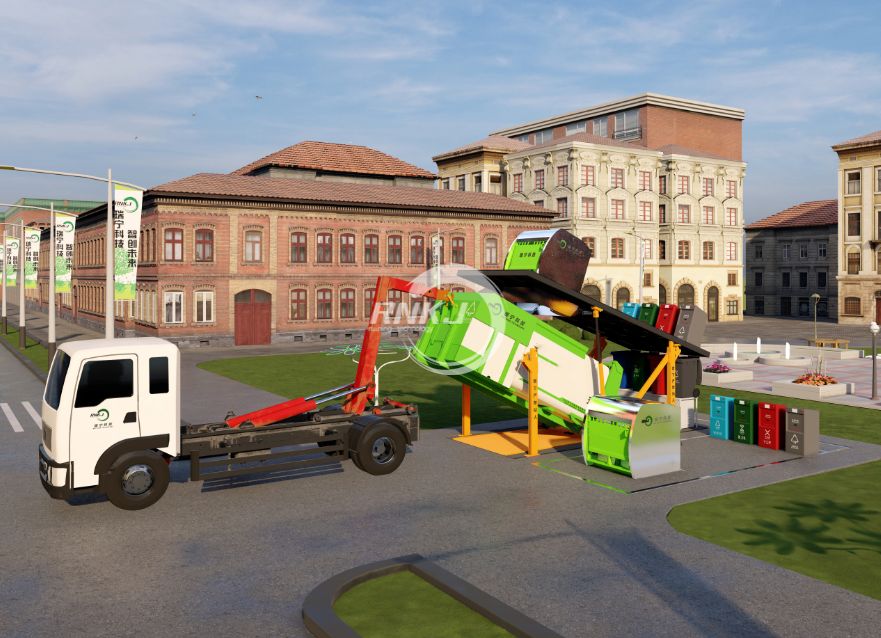

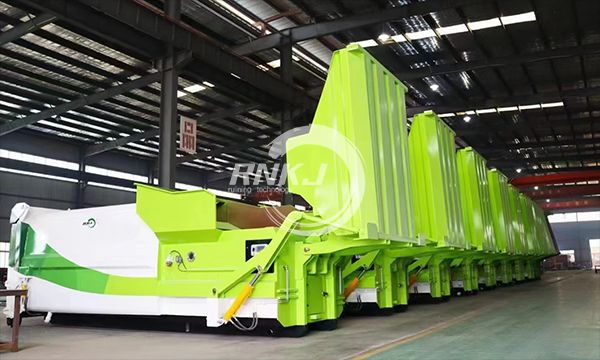

Mobile Garbage Compactor
The Mobile Garbage Compactor is a medium-sized and small-sized garbage collection and transportation equipment designed for basic sanitation scenarios such as towns, streets, ordinary communities, and industrial parks. It is installed on the ground and is easy to install and construct. The equipment adopts a horizontal closed compression process and is equipped with a dedicated sewage discharge space, which can effectively prevent the leakage of garbage leachate and the spread of odors, eliminating secondary pollution. The compression box body has multiple capacities that can be selected, and it can directly adapt to the existing dumpable garbage trucks of the sanitation department without the need for additional purchases. Moreover, the initial cost is low and the later operation and maintenance are convenient, making it a cost-effective choice for basic sanitation operations.
Core Strengths
Intelligent and flexible: Intelligent, mobile, flexible configuration, adaptable to various needs.
Initial cost controllable: Relatively low cost, simple construction process, short cycle.
Construction and operation: Ground-based equipment design, simple and convenient basic maintenance operations.
Function adaptation: Complete basic compression function, can quickly be implemented to meet the urgent needs of waste treatment.
Flexible renovation: If the site is adjusted in the future, the equipment relocation and renovation have strong adaptability.

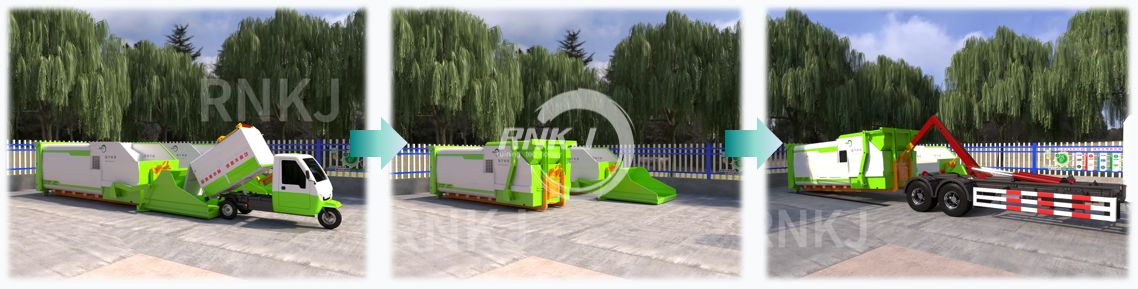

Working Process
Loading: The garbage collection vehicle pours the garbage into the equipment hopper.
Compression: The hopper automatically rotates to send the garbage into the compression chamber for compression. Once the compression box is fully loaded, the equipment will automatically issue an alarm and stop operating.
Transshipment: The compressed box is lifted as a whole by the detachable garbage vehicle from the carriage, and then transported to the waste treatment plant for further processing.

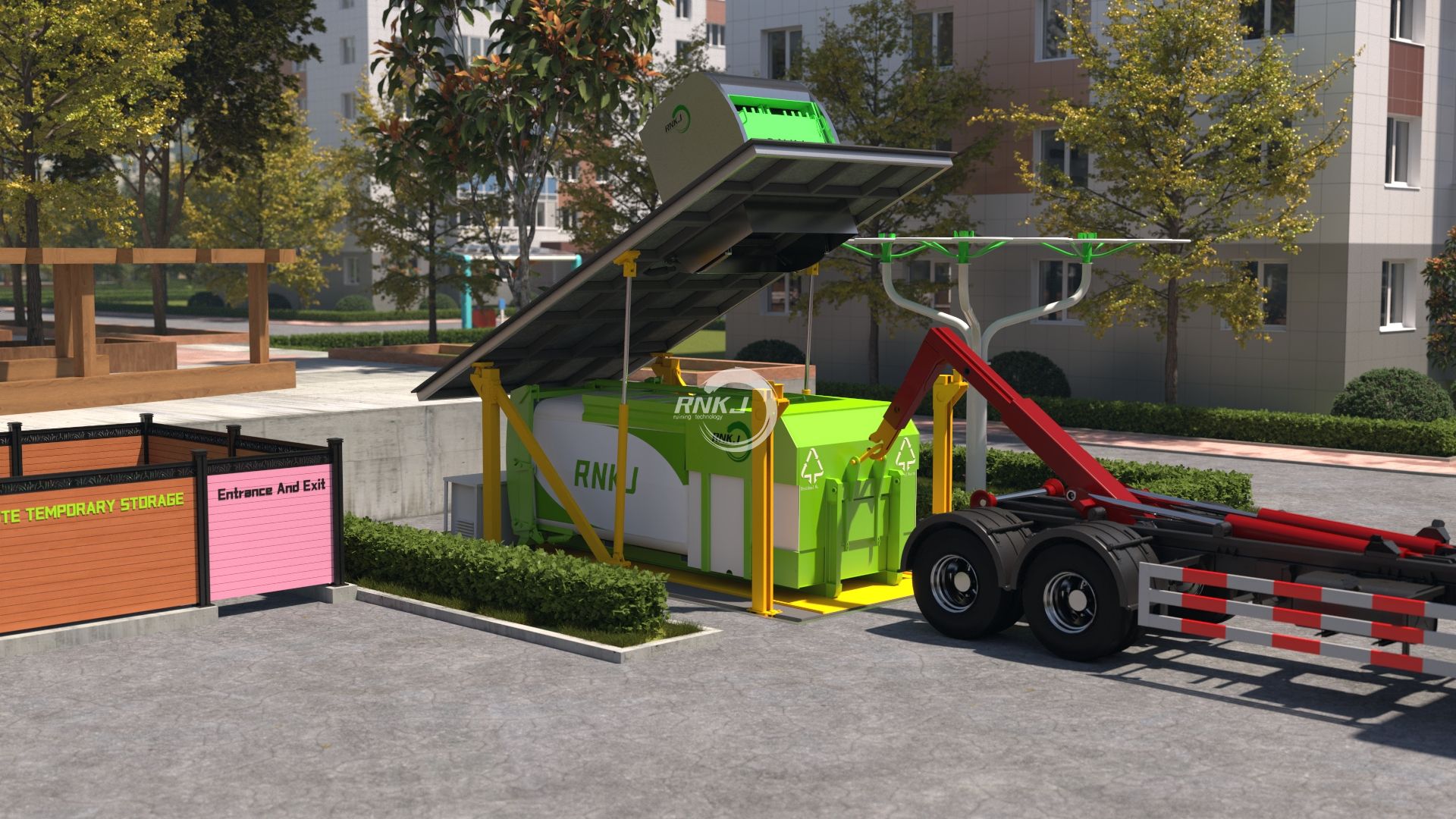

Underground Garbage Compactor
The Underground Garbage Compactor adopts a fully enclosed underground layout, eliminating the need for separate building construction and saving infrastructure investment. The equipment integrates systems such as lifting, compression boxes, odor removal, and drainage. The structure is complete; the cover on the lifting platform can be customized in styles like marble and grass, integrating seamlessly with the surrounding environment. The compression box has multiple capacities ranging from 6 to 22 cubic meters, and is directly compatible with the existing dumpable garbage trucks of the sanitation department, without the need for additional purchases. It is a garbage collection and transportation equipment suitable for scenarios with high requirements for concealment, aesthetics, and environmental protection, such as government agencies, high-end communities, and scenic spots.
Core Strengths
Hidden design
Fully underground structure, with only a material loading port on the ground, providing extremely high concealment and meeting the privacy requirements of special scenarios.
Ultra-low noise operation
The underground space has natural sound insulation, resulting in low noise during operation; the fully enclosed compression process ensures no odor leakage, and it is highly environmentally friendly.
Efficient use of space
The area is small, without affecting the overall layout of the venue, and the utilization rate of the site has significantly increased.
Long-term stable operation
High-standard configuration, with one-time investment leading to long-term stable operation, and low maintenance costs in the later stage.
Environmental protection and landscape integration. The fully enclosed compression process has no odor. The ground can be designed as a landscape, and it is highly integrated with the surrounding environment.
High-end grade compatibility
High standards, high specifications, long-lasting configuration, with strong stability in use, suitable for the needs of high-end environmental sanitation equipment.

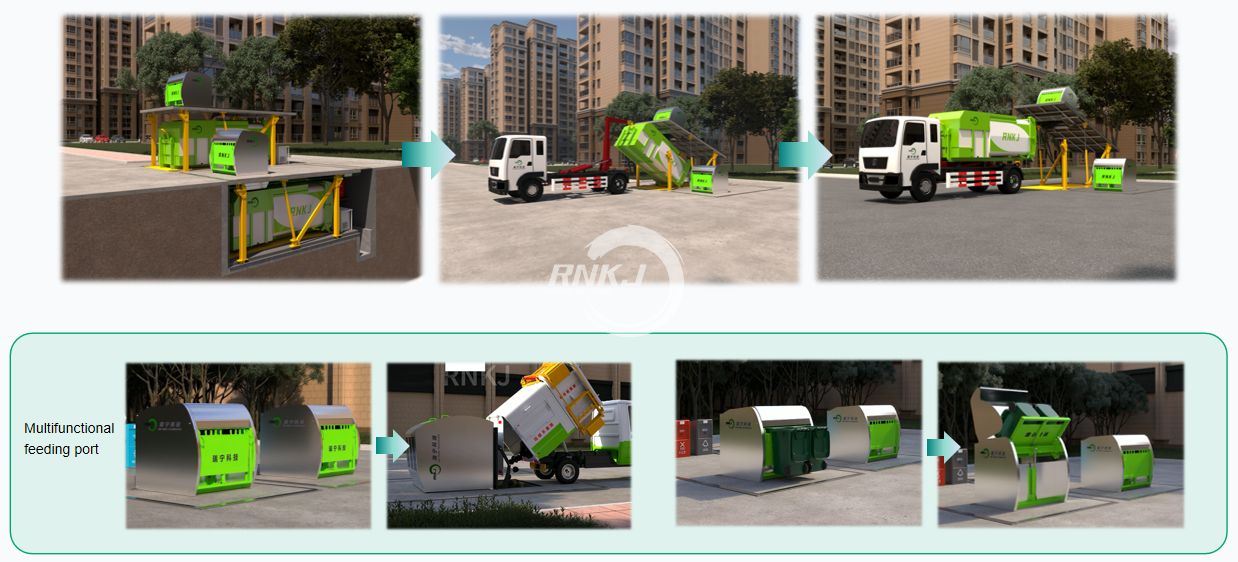

Working Process
Material Preparation
The lid of the ground material discharge port is opened. Residents, sanitation tricycles or small sanitation vehicles pour domestic garbage into the underground compression box, and the pre-pressing or simultaneous dumping and pressing are initiated at the same time.
Cyclic compression
When the lid is closed, the hydraulic drive compresses the head to horizontally push the garbage. This process is repeated 2-3 times to expel air and filtrate liquid, achieving a compression ratio of 1:3 to 1:5. A compacted garbage mass is formed.
The box is fully loaded.
Continuous feeding - The pressure is increased until the garbage inside the box reaches the preset weight/volume. The system automatically stops, the lid of the box and the discharge port gate close, and the box is ready for standby.
Ground lifting
Lifting the hinge frame / hydraulic platform inside the pit lifts the sealed box body to the ground, aligning it with the garbage transfer vehicle's compartment.
Sealed discharge
Before opening the front door of the box, precisely align it with the compartment of the transfer vehicle. The shovel mechanism will push the garbage blocks into the compartment all at once, without opening the box or causing any spillage.
Reset cycle
After the unloading process is completed, the box body falls back into the pit, the front door is closed, it is reset to standby mode, and then proceeds to the next round of operation.
In urban and residential areas, available space and visual integration with the surrounding environment are crucial factors.
Mobile waste compactor: The design is flexible and can operate on the ground without the need for underground excavation. Its compact footprint makes it highly suitable for narrow spaces, such as old communities, temporary event sites, or rural areas with limited infrastructure. Although they occupy ground space, their simple enclosed design minimizes visual pollution, and they can be easily moved if the waste generation pattern changes.
Underground garbage compactor: These devices perform exceptionally well in areas with limited space or where visual sensitivity is a concern. By placing the compaction system underground, only the feed inlet and the lid are visible on the ground, effectively solving the problem of garbage visual pollution. However, they are permanent installation devices and once installed, they cannot be moved - thus they are suitable for long-term fixed garbage collection points with stable demand.
Matching compressors with specific application scenarios can ensure they achieve optimal performance and efficiency.
Applicable to Mobile garbage compactor:
Temporary or dynamic environments: Large events, disaster rescue areas, or construction sites, where waste generation is short-term or has specific location characteristics.
Distributed waste sources: Rural areas or suburban communities, where there are scattered garbage collection points, and mobile equipment can adopt a "collect in villages, transfer in towns" model to serve multiple villages.
Renovation projects: Old communities with limited space and unsuitable for excavation, prioritizing the least civil engineering.
Applicable to Underground garbage compactor:
High aesthetic areas: scenic spots, hospitals, schools and upscale residential areas. In these places, it is necessary to minimize the accumulation of debris on the ground.
Fixed high-output locations: urban communities or commercial areas, where the daily waste generation is stable. Due to its superior continuous operation capability compared to mobile equipment, it becomes an ideal choice.
Intelligent waste management: Combined with IoT sensors, it enables real-time liquid level monitoring, which helps optimize collection routes.
Mobile garbage compactor
Installation method: Ground-mounted installation, convenient for site selection
Loading method: The loading method is simple and causes unpleasant odors
Appearance: The equipment is conspicuous and does not match the surrounding environment
Concealment: The equipment is exposed and has poor concealment
Operating sound: The noise is loud and causes significant interference to the site
Environmental sealing: The sealing performance is average, and the odors are prone to escape
Overall grade: Ordinary and simple type
Underground garbage compactor
Installation method: Completely buried underground, with only the feeding opening left on the ground.
Feeding method: Equipped with a multi-functional feeding port, aesthetically pleasing and odorless.
Appearance and landscape: Concealed and beautiful, highly integrated with the landscape.
Concealment: Entirely underground structure, with extremely strong concealment.
Operating sound: Underground sound insulation, quiet operation and low interference.
Environmental protection and sealing: Fully enclosed compression, no odor.
Overall grade: High standards, high specifications, long-lasting type.
Prioritize the Mobile Garbage Compactor
Core requirement: Only needs to meet the basic compression and transportation of garbage, without high-end supporting requirements
Supporting conditions: Limited financial budget, sufficient site size, no special requirements for concealment, aesthetics, or noise reduction
The preferred option is the Underground garbage compactor.
Core requirements: High demands for concealment, silence, environmental friendliness, and aesthetics
Supporting conditions: Pursuit of long-term stable operation, limited site size, located in special/high-end areas such as government agencies/high-end communities/scenic spots
Core Recommendation
The recommended product is the Underground garbage compactor. As an upgraded version of the intelligent mobile garbage compactor station, this product offers enhanced features that provide a better user experience. If the budget is limited, the practicality and cost-effectiveness of the above-ground products are also worthy of consideration. You can make a flexible decision based on your own budget size, usage requirements, site conditions, and environmental requirements, taking into account the four core factors: on-demand selection, local adaptation, and comprehensive assessment based on the four key factors: usage scenario requirements, budget, site conditions, and environmental requirements.
